PRODUCT TECHNICAL SPECIFICATIONS

The era of ATX and Micro-ATX constructed Dual-core and Quad-Core CPU platforms have been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major feature of this brand new design is the depth of this chassis has 380mm only, it supports the most cost effective and stable quality, combines with two intake 80mm fans at front side as standard and two exhaust 60mm fans at rear panel as option, comes with totally 6 drive bay with the chassis configuration, fits all standard 12"x9.6" Intel ATX MB form factor and standard PS2 power supply, meets regular server system application.

• Totally 7 drive bay: (if MB is 12"x9.6" ATX)

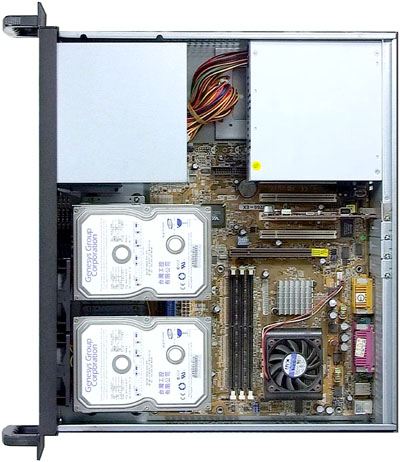

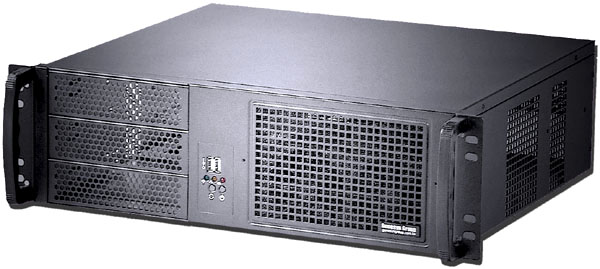

   2 x 5.25" CD and 5 x 3.5" HDD bay (pic1, pic2)

• Totally 8 drive bay: (if MB is 9.6"x9.6" Micro-ATX)
   3 x 5.25" CD and 5 x 3.5" HDD bay

• Totally 8 drive bay: (if MB is 9.6"x9.6" Micro-ATX)
   2 x 5.25" CD and 6 x 3.5" HDD bay

• Totally 9 drive bay: (if MB is 9.6"x9.6" Micro-ATX)
   2 x 5.25" CD and 5 x 3.5" HDD and 2 x 2.5" HDD  bay

• HDD bay with anti-vibration function supported

• Equipped two USB 2.0 port at front bezel

• Main structure of sheet metal by high-class SGCC 1.2mm~2.0mm thickness

• equipped with two 80mm x 25mm intake YATE LOON D80SM-12C fans with air filter at front bezel

• MB: ATX(12"x9.6")‧Micro-ATX(9.6"x9.6")‧Mini ITX(6.7"x6.7")

• Support PS2 power supply with 8cm or 12cm~14cm fan version (max. psu depth at 140mm~180mm)

• If 14cm deep PS2 psu installed, 5.25" ODD device by 21cm deep also compatible

• If 18cm deep PS2 psu installed, 5.25" ODD device by 17cm deep also compatible

• If front fixed with 3.5" HDD, 4 slot full high plugin cards (max. depth at 170mm)

• If front fixed w/o 3.5" HDD & bracket, 4 slot full high plugin cards (max. depth at 330mm)

• standard paint: black

• chassis dimension: 19" x 3U x 380mm (14.96" deep)
