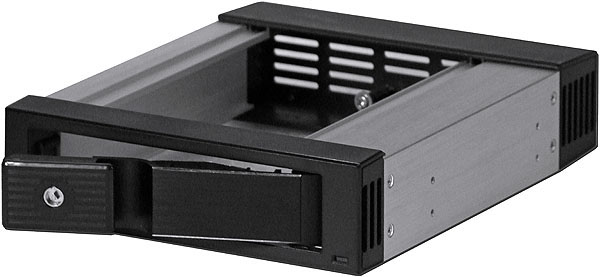

Aluminum 1x5.25" to
1x3.5" SAS/SATA Trayless Hot-Swap Cage Backplane
TL-135
|
PRODUCT
TECHNICAL SPECIFICATIONS
-
One 5.25" space converted to one 3.5"
hotswap module (additional RAID Controller Card needed)
-

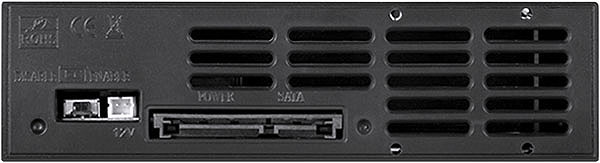

Support 1 x 3.5" SATA2/SATA3(6G) and
SAS-1/SAS-2(6G) HDD, maximum 25.4mm high HDD compatible
-
Entire mechanism by heat conductive
aluminum extrusion heatsink with glossy brushed finish on the
surface
-
TrayLess
mechanism design with
front aluminum security keylock hinge
-
1 HDD LED: each LED with 2 colors, blue as power,
flash purple while HDD is accessing
-
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 4pcs
-
Product dimension: 180(L) x 146(W) x 42(H)mm
-
Package: N.W. 0.28 KGM, G.W. 0.34 KGM, CUFT 0.049 (195mm x 154mm x
46mm, single box packed)
|
 |
|
|
|
Click
thumbnails to view larger photos
|
|
|
|
Our Price: $25.00 |
Availability:
Usually ships the next business day. |
Part#: TL-135 |
Ground Shipping: $10.00 |
Canada :
$30.00 |
Alaska/Hawaii:
$40.00 |
|
|
TL-135 |
 |
|
