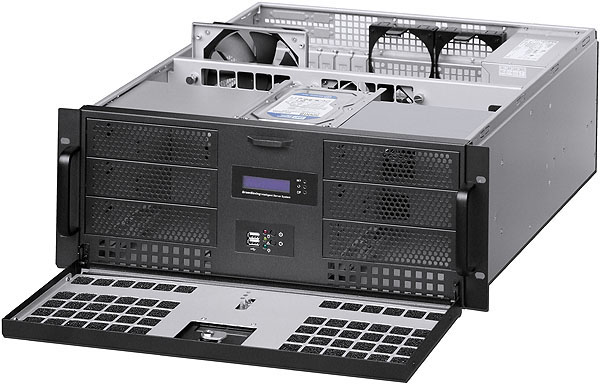

4U Intelligent Green Saving LCD Display & Fan Control

(6 x 5.25" + 8 x 3.5" HDD Bay) Rackmount Chassis

(20.08" Deep) (ATX / Micro-ATX / Mini ITX) Server Case

Support Standard ATX PS2 / PS3 size & Mini Redundant PSU

IPC-G4068-BK




pad







PRODUCT TECHNICAL SPECIFICATIONS

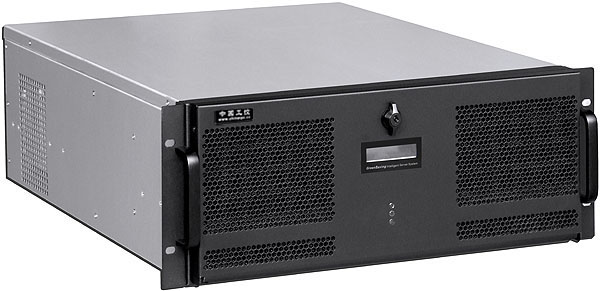

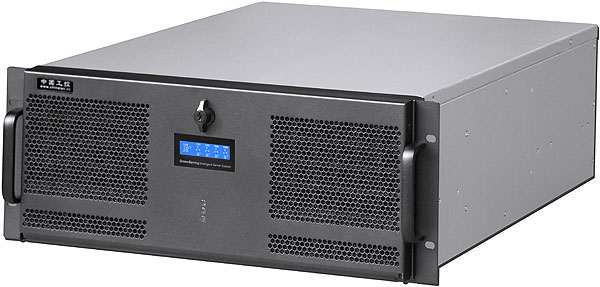

  • 4U EnergySaving server chassis

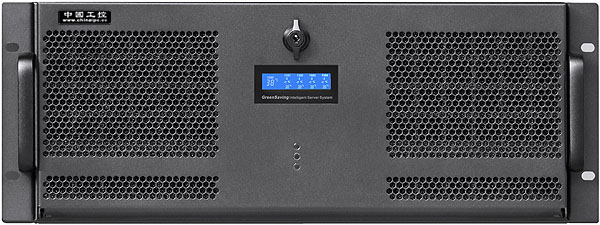

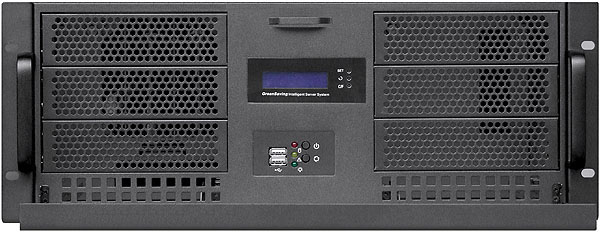

    build in Intelligent LCD display with fan control
    efficiently fan life time extendable

    Build in removable front key-lock door with air filter

    Vibration reduce function for HDD bay
    high grade aluminum rackmounting handles

    support 12"x9.6" ATX or smaller MB

    Main construction sheet metal by 1.2mm~2.0mm

    high clean grade Korean SECC (not cheap SGCC)

    Easy swap removable 12cm fan brackets

    Normal PS2 & most Taiwan RPS makers approved

    Build in brand new 120mmx25mm low noise fan

  • 14 Drive Capacity: 6x5.25" ODD, 8x3.5" HDD

  • Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C

  • Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C

  • Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)

  • Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

  • Build in security butterfly key-lock removable front door and removable air filter

  • HDD Drive bay equipped with anti-vibration function, extend storage appliance life

  • Build in high grade aluminum rackmounting handles

  • Build in removable front cover with air filter

  • Build with high & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness

  • Equipped two USB 2.0 ports behind the door (two USB 3.0 ports as option)

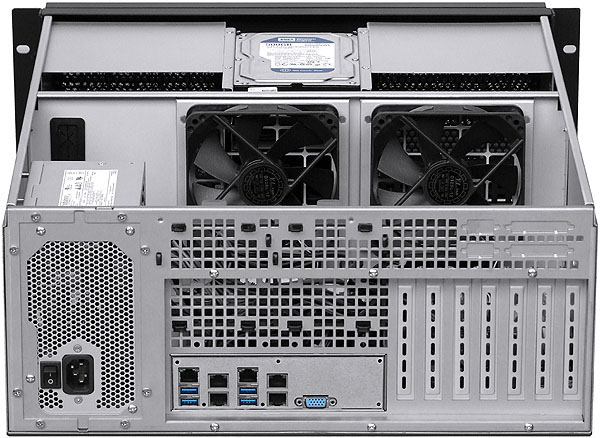

  • Two quick-assembly low noise 120mmx25mm cooling fans in the middle (fan part# D12SM-12C); Build-in two ABS screw less easy assembly optional 80mmx25mm an brackets at rear panel

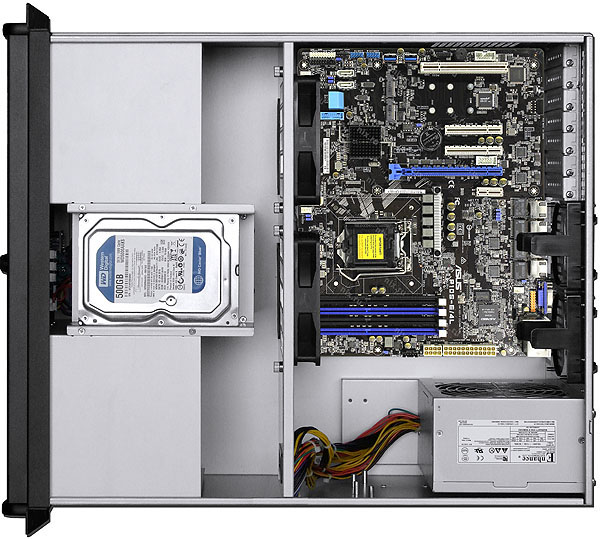

  • Support standard ATX 12"x9.6" and 9.6"x9.6" MicroATX and 6.7"x6.7" Mini-ITX MB

  • 8cm or 12cm~14cm fan version standard PS2 PSU compatible (PSU depth at 140mm~250mm)

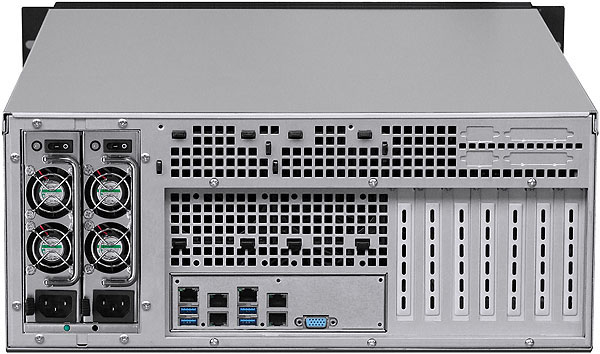

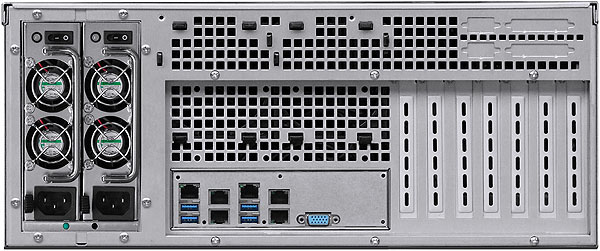

  • Support SureStar R4S series 174mm deep PS2 Mini-Redundant power supply installation

  • Support Enhance ENR0500 185mm deep PS2 Mini-Redundant power supply installation

  • Support Zippy MRT & MRW 185mm deep PS2 Mini-Redundant power supply installation

  • Support Etasis EFRP-2402/2462/S2502 190mm deep PS2 Mini-Redundant power supply installation

  • Support SureStar R4B series 199mm deep PS2 Mini-Redundant power supply installation

  • Support Zippy MRG series 200mm deep PS2 Mini-Redundant power supply installation

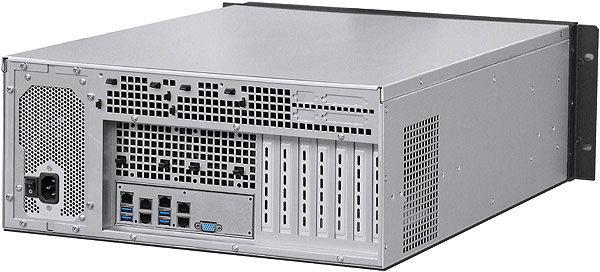

  • Support 7 slot full height expansion cards (maximum 220mm deep cards)

  • Standard paint: scratch-resistant Black textured at front

  • Chassis dimension: 19" x 4U x 510mm (20.08" deep)

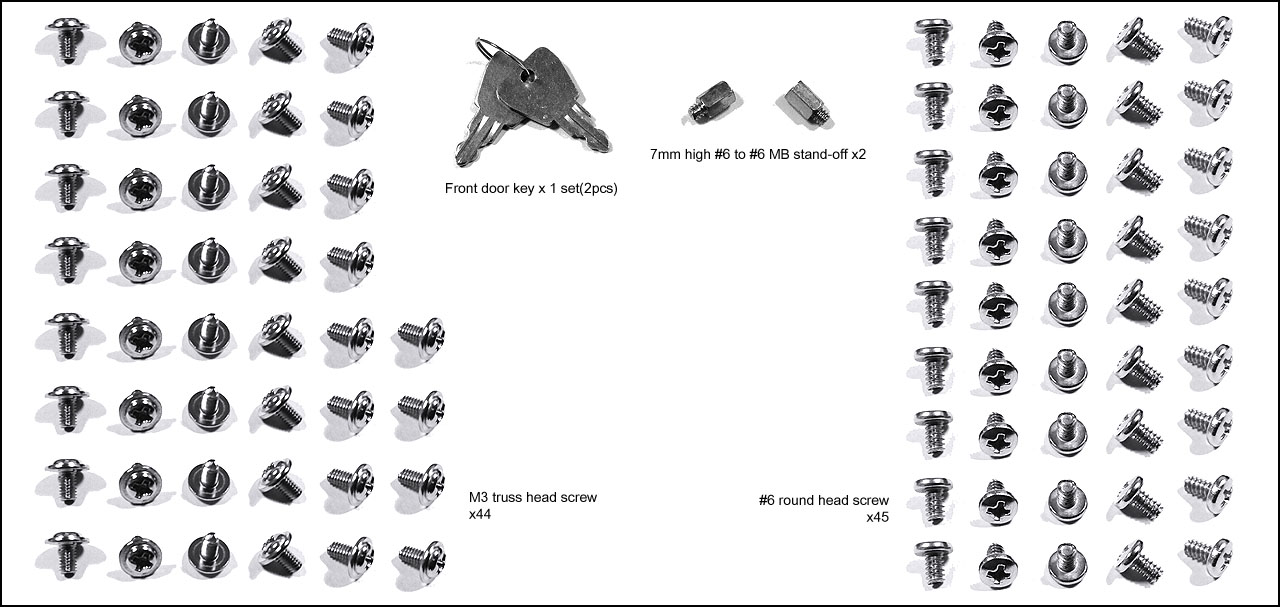

  • Accessory pack: M3 x44pcs, #6 x45pcs, metal MB stand-off x2pcs, key x2pcs

  • Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

  •  Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law



pad
border=0

 Dimension Drawing

Chassis Quick Manual

Our Price:pad$163.00 (The pricing does not include MB, HDDs and rail set on the pictures)
Availability:  Usually ships the next business day
Part#: IPC-G4068-BK
Ground Shipping: $65.00
Canada : $120.00
Alaska/Hawaii: $110.00


IPC-G4068-BK - Black
 Visa ,MasterCard, Discover, and American Express

Accessory optional (Free Shipping for purchasing w/ Chassis)

Brand

Item Price
USB 3.0 module $10

24in 2 Layer 3 Travel 2 x Universal Slide Rail & 4 x Rail Holder $50

18in Full Extension 2 x Universal Slide Rail & 4 x Rail Holder $40

4 Post Rear Mount and 2 post Central Mount brackets $15



Aluminum 1 x 5.25"  to 4x2.5" SAS/ATA Hot-Swap Cage Backplane TL-225_525 $22

Aluminum 1 x 5.25"  to 4x2.5" SAS/SATA Hot-Swap Cage Backplane RW-425 $52

Aluminum 1 x 5.25" to 6x2.5" SATA Hot-Swap Cage Backplane RW-625 $60

5.25" to 8x2.5" SATA Hot-Swap Cage Backplane RW-1825 $98

Aluminum 1 x 5.25" to 1x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-135 $25

Aluminum 2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage Backplane RW-825 $80

Aluminum 3x5.25" to 12x2.5" SAS/SATA Hot-Swap Cage Backplane RW-1225 $100

Aluminum 2 x 5.25" to 3x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-335 $55

Aluminum 3 x 5.25" to 5x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-535 $100

Universal 5.25" Bay  to 3.5" HDD or 3.5" HDD Bay to 2x2.5" HDDs $5

14 slots back plate 4U-14S-RP $20
