Picture of PAPTX-AGP

Multi Riser card for AGP/PCI/PCI Express

If you are not sure what card you need, send email to us include your MB model # and what slot you will use

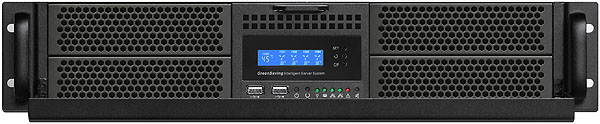

2U Intelligent Green Saving LCD Display & Fan Control

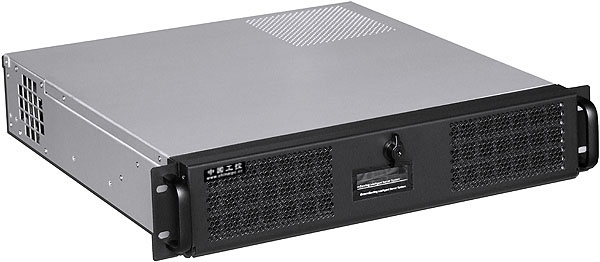

(4 x 5.25" + 4 x 2.5" HDD Bay) Rackmount Chassis w/ Lock Door

(16.93" Deep) Mini ITX Server Case

Support Standard ATX PS2 / PS3 size PSU








  • Drive Capacity: four 5.25" ODD (max. 205mm deep available) and four 2.5" SSD/HDD allowed

  • HDD bay with anti-vibration function supported

  • Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C

  • Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C

  • Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)

  • Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

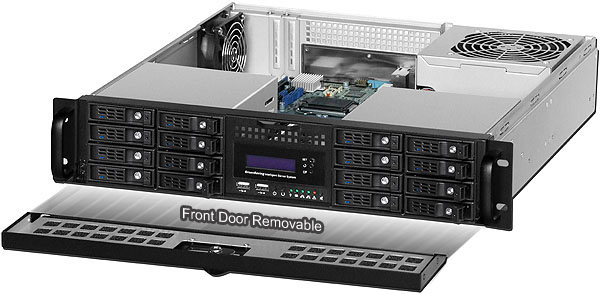

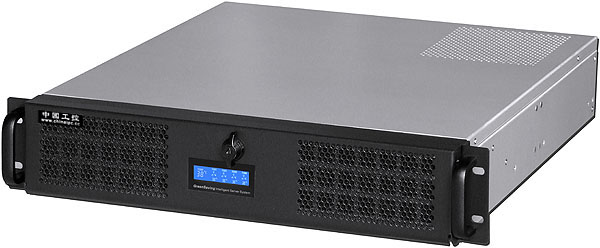

  • Build in high grade butterfly keylock security front door with removable filter (90-degree open/close, trayless HDD compatible)

  • Equipped two USB 2.0 port

  • Build in high grade aluminum rack mounting handles, all sheet metal by SECC 1.2mm~2.0mm thickness

  • One 80mm x 25mm low noise exhaust cooling fan at left side of chassis (fan part# D80SM-12C)

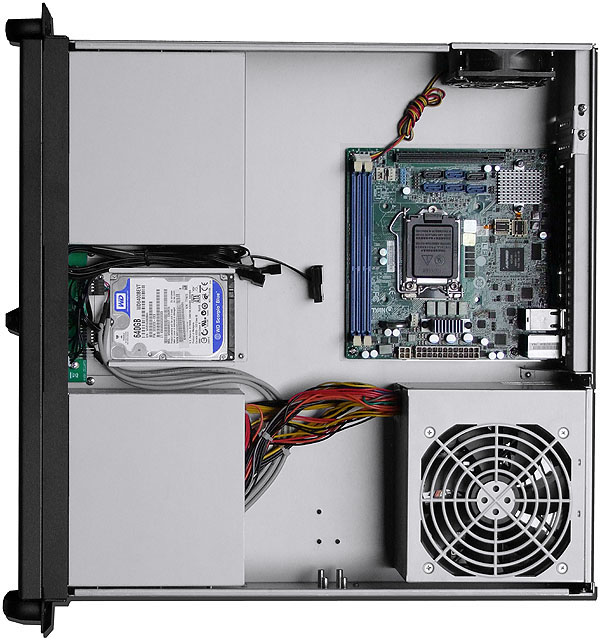

  • Support 6.7"x6.7" Mini-ITX MB

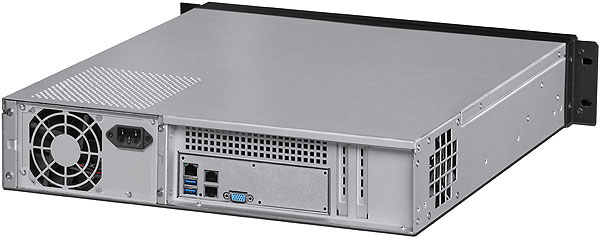

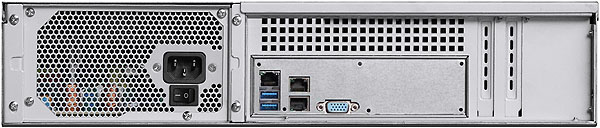

  • 8cm or 12cm~14cm fan version standard PS2 PSU compatible  (PSU depth at 140mm~200mm)

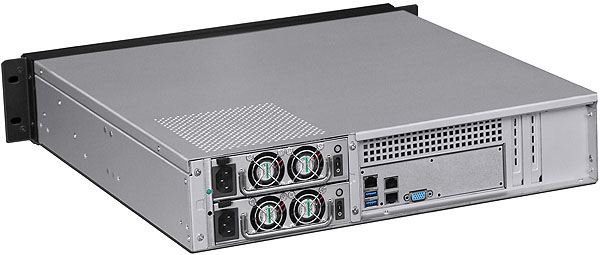

  • Support 400W~500W SureStar R4S series 174mm deep PS2 Mini-Redundant power supply installation

  • Support 400W~600W Enhance ENR0500 185mm deep PS2 Mini-Redundant power supply installation

  • Support 300W~600W Zippy MRT & MRW 185mm deep PS2 Mini-Redundant power supply installation

  • Support 600W~800W SureStar R4B series 199mm deep PS2 Mini-Redundant power supply

  • Support 500W~800W Zippy MRG series 200mm deep PS2 Mini-Redundant power supply installation

  • Support 2 slot low profile height expansion cards (maximum 200mm deep cards if 5.25" ODD depth at 205mm)

  • Standard paint: scratch-resistant Black textured at front, and protective insulation sheet on surface of body

  • main construction sheet metal by 1.0mm~1.2mm

  • Chassis dimension: 19" x 2U x 430mm (16.93" deep)

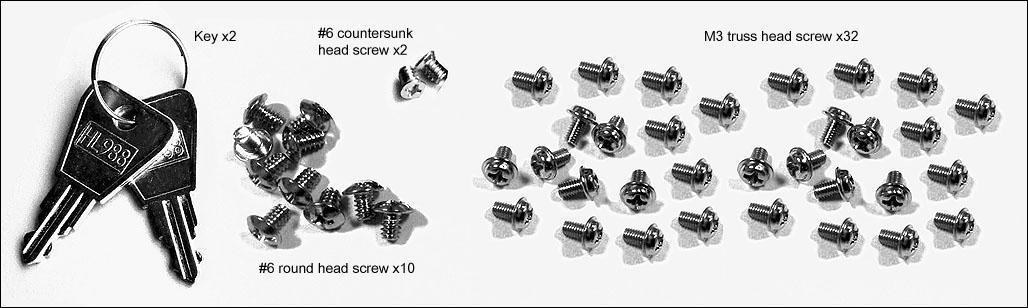

  • Accessory pack: #6 round head screw x10, #6 countersunk head screw x2, M3 truss head screw x32, key x2

  • Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

  • Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law


 Dimension Drawing

Chassis Quick Manual

Our Price:pad$142.00 (The pricing does not include MB, HDDs and rail set on the pictures)
Availability: Usually ships the next business day
Part#: ITX-G2430D-BK
Ground Shipping: $55.00
Canada : $100.00
Alaska/Hawaii: $75.00

ITX-G2430D-BK - Black
 Visa ,MasterCard, Discover, and American Express

Accessory optional (Free Shipping for purchasing w/ Chassis)

Check ALL 2U CPU fans ; Free S/H for ship with Chassis (


Item Price


24in 2 Layer 3 Travel 2 x Universal Slide Rail & 4 x Rail Holder $40

18in Full Extension 2 x Universal Slide Rail & 4 x Rail Holder $40

4 Post Rear Mount and 2 post Central Mount brackets $15


Aluminum 1 x 5.25"  to 4x2.5" SAS/ATA Hot-Swap Cage Backplane TL-225_525 $22

1 x 5.25 to 2 x M.2 SSD Removable Cage M.2 NVMe 64Gbps NVME-102-525 $92


Aluminum 1 x 5.25"  to 4x2.5" SAS/SATA Hot-Swap Cage Backplane RW-425 $52

Aluminum 1 x 5.25"  to 4x2.5" SATA2/SATA3 (SAS12G) Hot-Swap Cage Backplane RW-1425 $62


Aluminum 1 x 5.25"  to 6x2.5" SATA2/SATA3 (SAS12G) Hot-Swap Cage Backplane RW-625 $80

5.25to 8x2.5" SATA Hot-Swap Cage Backplane RW-1825 $98


1 x 5.25 to 4 x M.2 SSD Removable Cage M.2 NVMe 64Gbps NVME-104 $230


1 x 5.25 to 8 x M.2 SSD Removable Cage M.2 NVMe 64Gbps NVME-108 $440


Aluminum 1 x 5.25" to 1x3.5" SATA Hot-Swap Cage Backplane NVME-104-25 $180


Aluminum 1 x 5.25" to 1x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-135 $25

Aluminum 2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage Backplane RW-825 $80

Aluminum 2 x 5.25" to 3x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-335 $55

Universal 5.25" Bay  to 3.5" HDD or 3.5" HDD Bay to 2x2.5" HDDs $5
