Picture of PAPTX-AGP

Multi Riser card for AGP/PCI/PCI Express

If you are not sure what card you need, send email to us include your MB model # and what slot you will use


4U Intelligent Green Saving LCD Display & Fan Control

(Slim-DVD + 5.25" + 2 x 3.5" + 2 x 3.5" HDD Bay) Rackmount Chassis

(14.96" Deep) (EATX / ATX / Micro-ATX / Mini ITX) Server Case

Support Standard ATX PS2 / PS3 size & Mini Redundant PSU

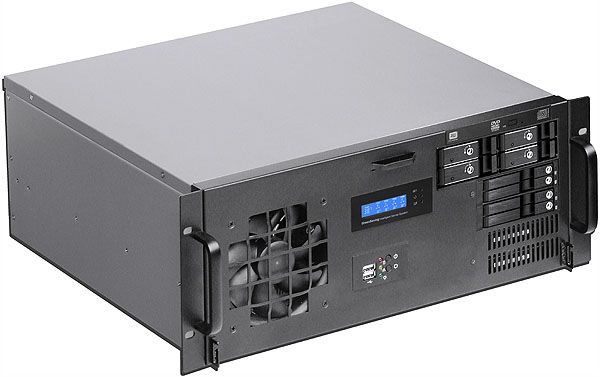

IPC-G4US15DX (Green 4U Short D:15" Lock-Door eXtend-ATX MB)




pad







PRODUCT TECHNICAL SPECIFICATIONS

4U EnergySaving server chassis

build in Intelligent LCD display with fan control
efficiently fan life time extendable

build in removable front key-lock door with air filter

high grade aluminum rackmounting handles

support 12"x13" eATX or smaller MB

main construction sheet metal by 1.0mm~1.2mm

high clean grade Korean SECC (not cheap SGCC)

short depth may allow one front and one rear 4U

approved to use by Japan Military Defense Dept

normal PS2 & most Taiwan Rredundant PS makers approved

build in brand new 120mmx25mm low noise fan

IPC-G4US15DX is the latest 4U product which features the depth at 380mm only but it can support eATX 12 "x13" dual CPU motherboard or smaller form factor of board as well. Main structure made of 1.2mm~2.0mm thickness sheet metal with no burrs or cutting corners. The rackmount handles are made of high-strength aluminum alloy die-cast, and overall body presents the durable strength, the whole chassis with the electronic components supported with global quality guaranty. It also supports PS2 or PS2 Mini-Redundant power supply by accurately fixed at the front and rear. Owing to the great competitiveness, welcome the global distribution.

  • Storage capacity: 1 x slim DVD/RW, 1 x 5.25" ODD, 4 x 3.5" HDD (two of them can be 3.5" FDD as well)

  • Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C

  • Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C

  • Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)

  • Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

  • Build in high grade aluminum rackmounting handles

  • Build in security butterfly key-lock removable front door and removable air filter

  • Build with high & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness

  • Equipped two USB 2.0 ports

  • One 120mm x 25mm low noise cooling fan at the front bezel of chassis (fan part# D12SM-12C)

  • Equipped with two ABS screwless easy assembly 80 x 25mm fan (Optional) frames at rear panel

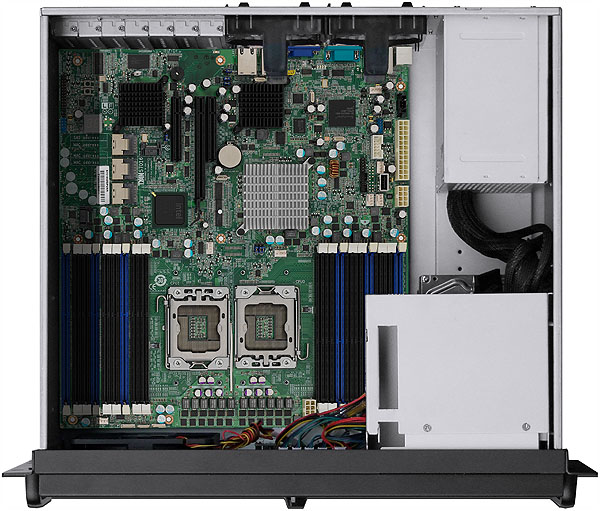

  • Support standard eATX(12"13") & eATX(12"10.5") & ATX(12"x9.6") & MicroATX(9.6"x9.6") & Mini-ITX(6.7"x6.7") MB

  • Support PS2 power supply with 120mm~140mm fan version (max. psu depth: 200mm)

  • Or support PS2 Mini Redundant power supply by Zippy, Etasis, Enermax and Enhance (max. psu depth: 200mm)

  • Enhance ENR0500 PS2 Mini Redundant RPS compatible (depth at 185mm, front & rear precisely fixed)

  • Zippy MRT & MRW PS2 Mini Redundant RPS compatible (depth at 185mm, front & rear precisely fixed)

  • Etasis EFRP-2462 & EFRP-S2502 PS2 Mini Redundant RPS compatible (depth at 190mm, front & rear precisely fixed)

  • SureStar R4B PS2 Mini Redundant RPS compatible (depth at 199mm, front & rear precisely fixed)

  • Zippy MRG PS2 Mini Redundant RPS compatible (depth at 200mm, front & rear precisely fixed)

  • Maximum 170mm deep 5.25" device compatible when 200mm deep power supply installed at rear side of chassis

  • Support 7 slot full high expansion cards (max. 330mm long)

  • Standard paint: scratch-resistant Black textured

  • Chassis dimension: 19" x 4U x 380mm (14.96" deep)

  • Accessory pack: #6 round head x30, M3 truess head x12, M2 round head screw x4, metal MB stand-off x7, key x2

  • Package: NW 8.0 KGM, GW 10 KGM, 2.78 CUFT (carton size: 560x530x265mm)

  • Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

  • Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

pad
border=0


 Dimension Drawing

Chassis Quick Manual

Our Price:$105.00 (The pricing does not include MB, HDDs and rail set on the pictures)
Availability: Usually ships the next business day.
Part#: IPC-G4US15DX-BK
Ground Shipping: $35.00
Canada : $70.00
Alaska/Hawaii: $80.00

  IPC-IPC-G4US15DX-BK - Black   Our Price:$105.00
Visa ,MasterCard, Discover, and American Express

IPC--IPC-G4US15DX_MRG-6500P   Our Price:$515.00

IPC-G4380S_TC500R8A   Our Price:$460.00

IPC-G4380S_TC400R8A   Our Price:$390.00

Accessory optional (Free Shipping for purchasing w/ Chassis)

Brand

Item Price
5.25" Programmable USB 20x4 character LCD module, six button keypad PLCD-525 $115
3.5" Programmable USB 20x2 character LCD module, four button keypad PLCD-35 $100
USB 3.0 module $10



24in 2 Layer 3 Travel 2 x Universal Slide Rail & 4 x Rail Holder $40

Black 20in Slide Rail & Rail Holder for  2 x rails and 4 x L-type brackets $30

Black 26in Slide Rail & Rail Holder for  2 x rails and 4 x L-type brackets $40

4 Post Rear Mount and 2 post Central Mount brackets $10
Aluminum 1 x 5.25"  to 4x2.5" SAS/ATA Hot-Swap Cage Backplane TL-225_525 $22
Aluminum 1 x 5.25"  to 4x2.5" SAS/SATA Hot-Swap Cage Backplane RW-425 $52
Aluminum 1 x 5.25" to 6x2.5" SATA Hot-Swap Cage Backplane RW-625 $60
5.25" to 8x2.5" SATA Hot-Swap Cage Backplane RW-1825 $98
Aluminum 1 x 5.25" to 1x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-135 $25

1 x 3.5" FDD Space to 2.5" TrayLess Hot-Swap Cage Backplane SNT-1111S $15

Aluminum 1 x 3.5" FDD Space to 2 x 2.5" TrayLess Hot-Swap Cage Backplane TL-225 $20
Universal 5.25" Bay  to 3.5" HDD or 3.5" HDD Bay to 2x2.5" HDDs $5

HDD Bracket for 5.25" Bay $5

14 slots back plate 4U-14S-RP $20

Athena Power 600W EPS12V Xeon P4ATX60FE

$60

Sparkle 400W ATX-400PA-B204 $45

Sparkle 650W EPS12V i7 P4 FSP650-80GLC $98

Zippy 460W 24+8+4 Xeon P4 HP2-6460P $100

80+ 600W EPS12V PS3 MPS3ATX60FEP8 $120

TC-Sure Star 400W Redundant TC-400R8 $245
