PRODUCT TECHNICAL SPECIFICATIONS

• Drive Capacity:
     two 5.25" ODD Open and five 3.5" HDD bay (12"x9.6" ATX MB installed mode)
     or three 5.25" ODD and five 3.5" HDD bay (9.6"x9.6" Micro-ATX MB installed mode)
     or two 5.25" ODD and six 3.5" HDD bay (9.6"x9.6" Micro-ATX MB installed mode)
     or two 5.25" ODD and five 3.5" HDD and two 2.5" SSD/HDD bay (9.6"x9.6" Micro-ATX MB installed mode)

• Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C

• Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C

• Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)

• Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

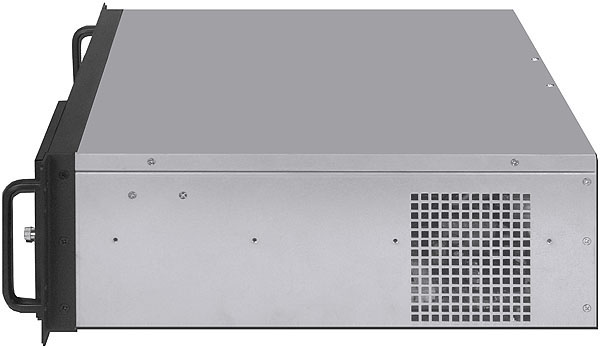

• Build in high grade aluminum rack mounting handles

• HDD bay with anti-vibration function supported

• Mechanism made by high & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness

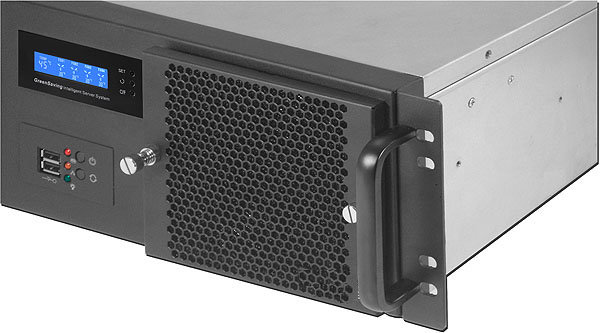

• Front bezel build in removable front cover with air filter and 2 x USB 2.0 ports (USB 3.0 ports as option)

• Cooling by one brand new 120mmx25mm YATE LOON D12SM-12C intake fan ; 2 x 6cm optional fans on the rear

• Room noise without fan activated is 45dBA, tested by 10cm distance to the running fan is 70dBA (including room noise)

• Build in removable front cover with air filter

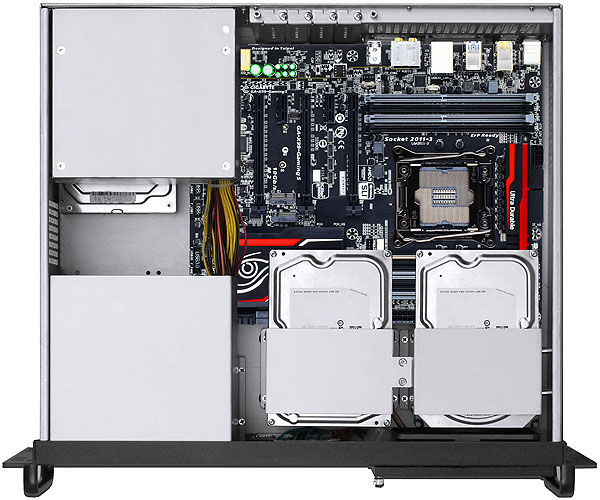

• support 12"x9.6" ATX , 9.6"x9.6" Micro-ATX and 6.7"x6.7" Mini ITX MB

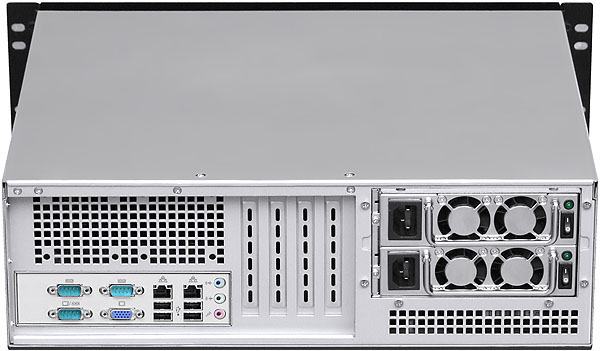

• Support PS2 power supply with 120mm~140mm fan version (PSU depth at 140mm~200mm)

• If regular 140mm deep PS2 power supply installed, maximum 220mm deep 5.25" ODD device compatible

• If 180mm deep PS2 power supply installed, maximum 170mm deep 5.25" ODD device compatible

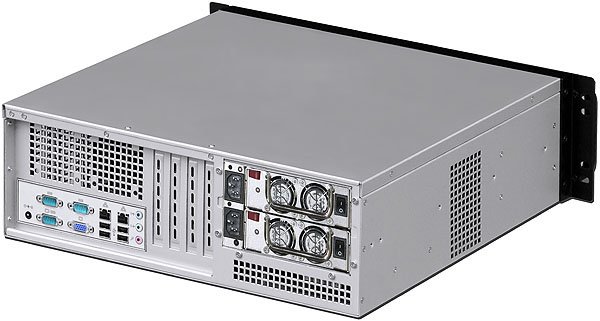

• If Enhance ENR0500 PS2 185mm deep Mini RPS installed, maximum 165mm deep 5.25" ODD device compatible

• If Zippy MRT & MRW PS2 185mm deep Mini RPS installed, maximum 165mm deep 5.25" ODD device compatible

• If Etasis EFRP-2402/2462/S2502 PS2 190mm deep Mini RPS installed, maximum 160mm deep 5.25" ODD device ok

• If SureStar R4B series PS2 199mm deep Mini RPS installed, maximum 155mm deep 5.25" ODD device compatible

• If  Zippy MRG series PS2 200mm deep Mini RPS installed, maximum 155mm deep 5.25" ODD device compatible

• Note: if different depth of redundant power supply installed, please note the available depth of 5.25" ODD at front side

•  If 4 slot full high plugin cards deeper than 170mm, two 3.5" HDD at front are not allowed

•  If 4 slot full high plugin cards depth at 330mm, two 3.5" HDD as well as its HDD bracket at front are not allowed

• support 4 slot full high expansion cards (max. 175mm long for regular application)

• Note: All full height GPU cards with power input on top side will not fit with 3U chassis

• standard paint: black

• Accessory pack: M3 round head nickel plated screw x 24pcs, #6 round head nickel plated screw x 58pcs, M3 countersunk nickel plated screw x 16pcs, metal MB standoff x 2pcs, plastic MB standoff x 1pcs, key x 2pcs

• chassis dimension: 19" x 3U x 380mm (14.96" deep)

• Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

• Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law
