PRODUCT TECHNICAL SPECIFICATIONS

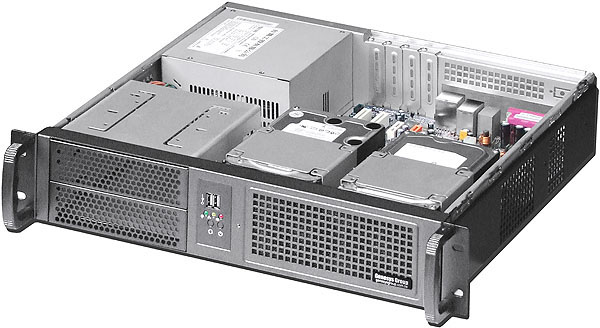

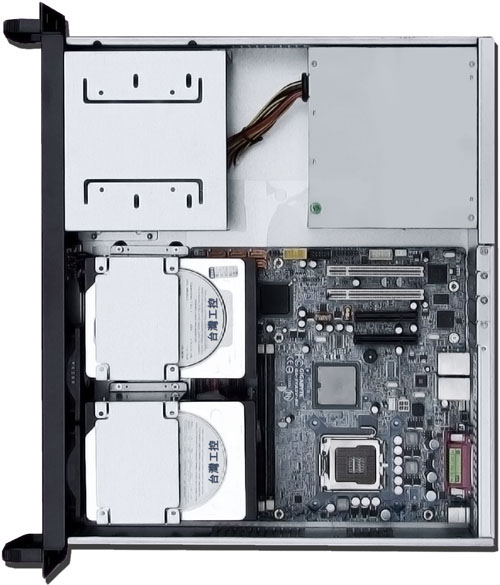

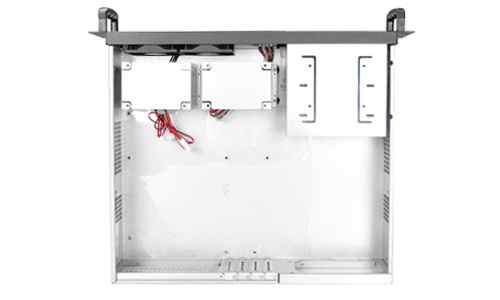

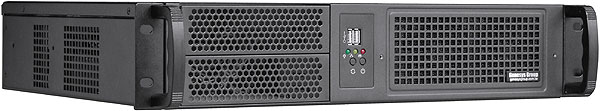

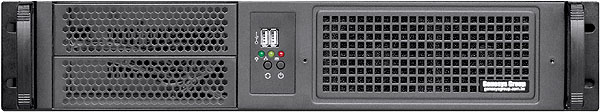

The era of Micro-ATX constructed Dual-core and Quad-Core CPU platform has been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major feature of this brand new design is the depth of this chassis has 14.96" only, it supports the most cost effective and stable quality, combines with two intake 80mm fans at front side, comes with totally 4 drive bay with the chassis configuration, fits all standard Micro-ATX 9.6""x9.6" motherboard form factor and standard PS2 / PS3 power supply, meets regular server system application.

• Totally 4 drive bay:
     2 x 5.25" Open and 2 x 3.5" HDD bay

• HDD bay with anti-vibration function supported

• equipped two USB 2.0 port

• equipped with two 80mm x 25mm intake YATE LOON D80SM-12 fans with air filter at front bezel

• support 9.6"x9.6" Micro-ATX MB and 6.7" x 6.7 Mini ITX MB

• Support PS2 power supply with 120mm~140mm fan version (max. psu depth at 140mm~180mm)

• If 140mm deep PS2 psu installed, max. 210mm deep 5.25" ODD device compatible

• If 180mm deep PS2 psu installed, max. 170mm deep 5.25" ODD device compatible

• If front fixed with 3.5" HDD, 4 slot low profile cards (max. depth at 170mm)

• If front fixed w/o 3.5" HDD & bracket, 4 slot low profile cards (max. depth at 330mm)

• standard paint: black

• chassis dimension: 19" x 2U x 380mm (14.96" deep)

• Accessory pack: M3 round head nickel screw x 8pcs, #6 round head nickel screw x 20pcs

• package: NW 5 KGM, GW 7 KGM, 1.72 CUFT (56x51x17cm, single box packed)
