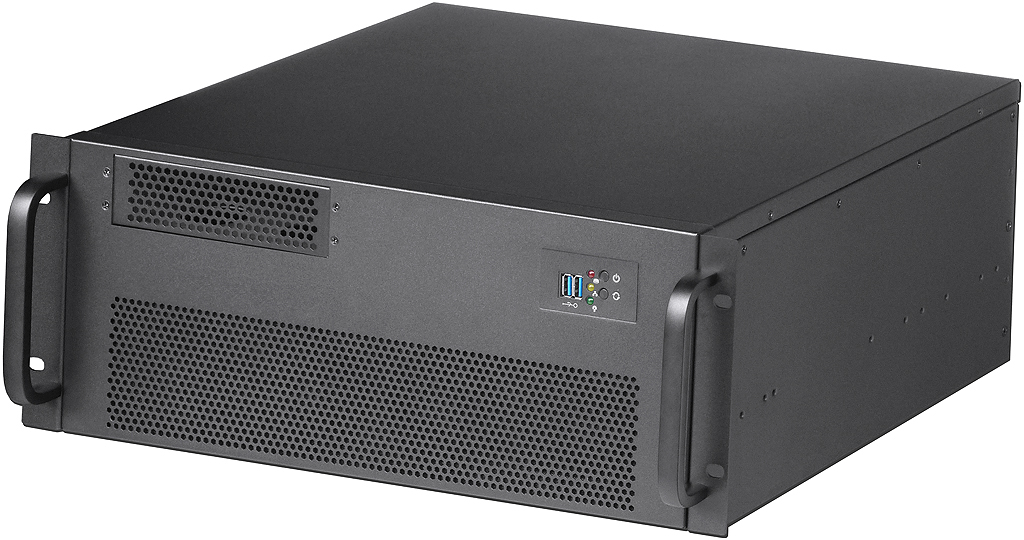

4U (5.25" + 2 x 3.5" + 2 x 2.5" HDD Bay) Front Access Rackmount Chassis

(15.75" Deep) ( 12" x 13" EATX / ATX / Micro-ATX / Mini ITX ) Server Case

Support Standard ATX PS2 / PS3 size & Mini Redundant PSU

USB 3.0 Support

IPC-AI440F-BK

One of the features of the 4U IPC-AI440F is that the depth is only 400mm, and the I/O front or I/O rear functions can be installed/converted. The 4 cooling fans with excellent heat dissipation, with a depth of less than 350mm high-end GPU cards can be installed, and it conforms to good ventilation and heat dissipation requirements. The storage space can be installed with 1 set of 5.25” ODD as well as 2 sets of 3.5” HDD and 2 sets of 2.5” SSD. The 5.25” space can also be installed with a variety of hot-swap hard drives. The major sheet metal mechanism is made of 1.2mm~2.0mm thickness SGCC material, and the cut surfaces of all sheet metal parts are designed with smooth folded edges to ensure that no hands damaged during system assembly.

PRODUCT TECHNICAL SPECIFICATIONS

• Drive Space: 5.25" ODD x1, 3.5" HDD x2, and 2.5" SSD x2

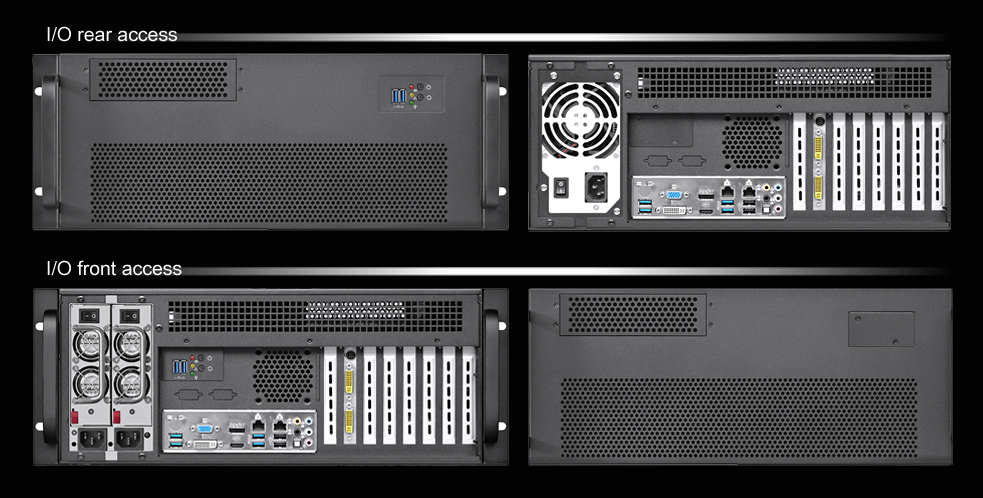

• I/O front and rear functions available, achieved without any additional fixing brackets

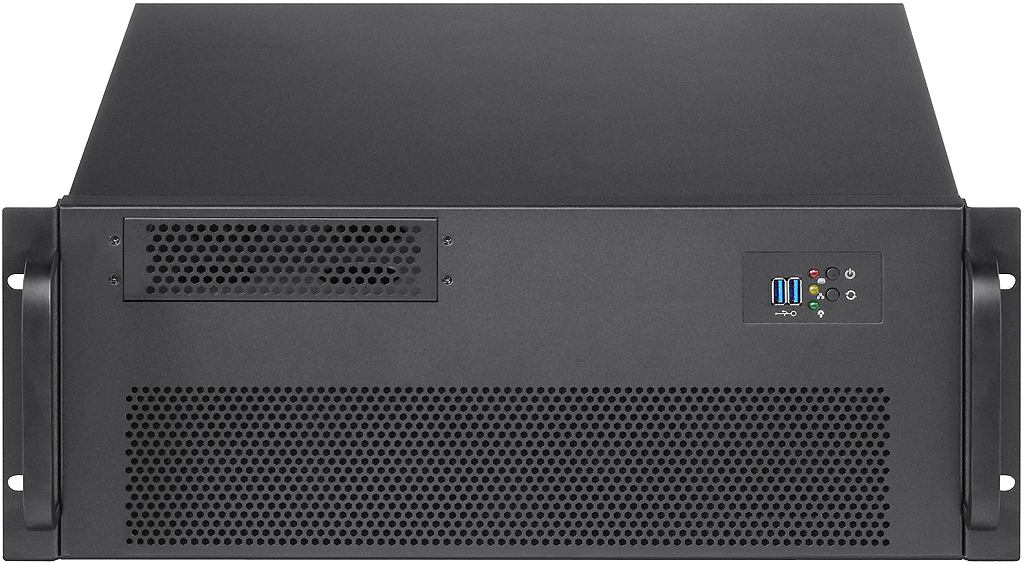

• Two USB 3.0 ports, LAN/HDD/Power LED, and On/Off & Reset buttons at front bezel

• High strength aluminum alloy die casting handles ensure stability during rackmounting

• The major sheet metal constructed by 1.2mm~2.0mm SGCC mechanism

• Dust-proof filter at back side of front bezel to reduce dust into system inside

• Two 80mmx25mm intake fans at left side of front bezel

• Two 80mmx25mm intake fans at right side of front bezel

• MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

• 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~250mm)

• Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)

• Support Zippy MRT & MRW series PS2 Mini Redundant PS (depth 185mm)

• Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)

• Support Zippy MRG series PS2 Mini Redundant PS (depth 200mm)

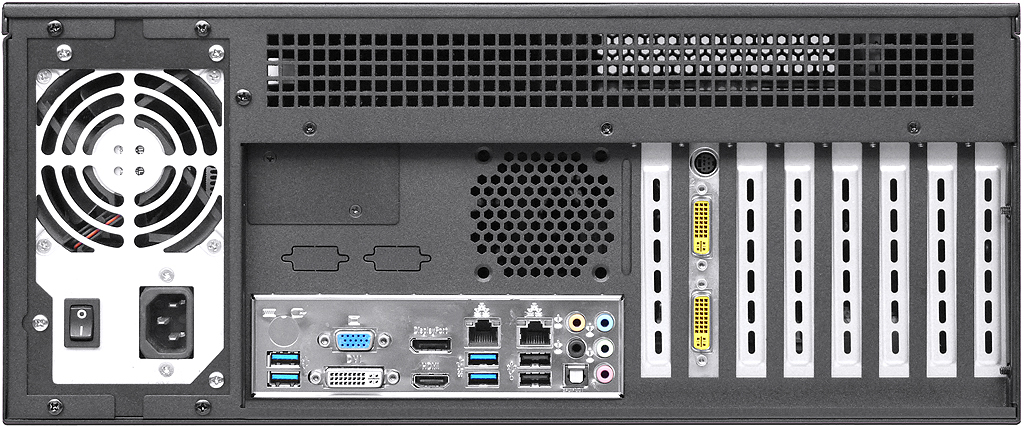

• 8-slot rear panel supports 7-slot NVIDIA GPU cards or the other expansion cards

• Maximum 350mm deep 7 cards installable if 80mmx25mm fans installed at front

• Maximum 335mm deep 7 cards installable if 80mmx38mm fans installed at front

• Standard paint: scratch-resistant black textured at surface of chassis

• Chassis dimension: 19" x 4U x 400mm (15.75" deep)

• Note1: 5.25" ODD bay dischargeable if hitting higher or deeper expansion cards

• Note2: two 3.5" HDD bay 90-degree installable when higher CPU cooler beneath it
