1U AMD socket
A/Intel Socket 370
Up to XP2200+
C51G / DC1206BM-R1 |
|
|
C51G
DC-1206BM-R1
|
-
Good 1U cooling Solution
-
46 Micro copper fins
|
| Application |
| CPU |
AMD:K7 (Socket A / 462)up to XP 1900+;INTEL:Socket 370 up to
1.13 GHz |
| Specification |

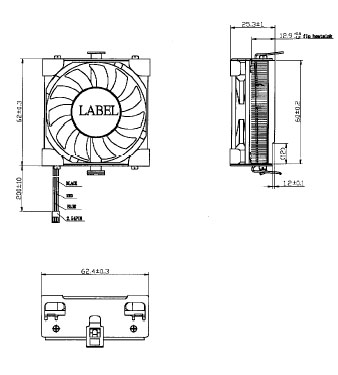

| Overall Dimension |
62.4x62x25.3 mm |
| Thermal Resistance |
0.62 °C/W |
| Weight |
252 g |
| Heat Sink |
| Material |
Copper C1020 |
| Dimension |
60x60x11.9 mm |
| Fan |
| Dimension |
60x60x10 mm |
| Speed |
5300 rpm |
| Bearing |
Ball |
| Rated Voltage |
12 V |
| Air Flow |
24.4 cfm |
| Noise Level |
40 dBA |
| Air Press. |
0.18 inch-H2O |
|
|
|
|
|
| Fan
& Heatsink |
Dimension
|
Bearing |
Rated
Voltage |
Operation
Voltage |
Rated
Current |
Rated Input
Power |
Max. AirFlow |
Max.Air
Pressure |
Speed |
Operation
Temp. |
| mm |
|
V |
V |
A |
W |
CFM |
inch-H2O |
RPM |
°C |
| 60x60x10 |
Ball |
12 |
12±15% |
0.29 |
3.48 |
24.4 |
0.18 |
5300 |
-10°C ~ +65°C |
| Skiving Heat Sink |
- Material: Copper C1020
- Dimension: 60x60x11.9
- Pitch: 1.3 mm
- Thickness of fin: 0.5 mm
- Number of fins: 46
- Height of fin: 7.5 mm
- Height of base: 4 mm
- Length of base: 60 mm
|
|
|
|
|
| Our Price:$25.00 |
| Availability:
Usually ships the next business day. |
| Part#:
C51G / DC1206BM-R1 |
| UPS Ground Shipping: $10.00 |
| Canada :
$20.00 |
| Alaska/Hawaii:
$40.00 |
|
|
| C51G
/ DC1206BM-R1 |
 |
|
