Picture of PAPTX-AGP

Multi Riser card for AGP/PCI/PCI Express

If you are not sure what card you need, send email to us include your MB model # and what slot you will use


2U AMD approved,

Support up to Althon XP3000+ and MP2600+

C41 / DC1206BM-L/610-P-Cu
pad pad

C41 DC1206BM-L/610-P-Cu

  • 60x60x10 (mm) 4500rpm Fan:

  • AMD Recommended

  • Up to XP2700+, XP2800+ & XP3000+; MP2600+

  • Designed for 2 U server

Application
CPU

AMD:K7(Socket A/462)

AMD Recommended up to XP2700+, XP2800+ & XP3000+; MP 2600+ ;

 INTEL:FC-PGA(Socket 370) 933MHZ,1/1.26GHZ, 1.40 Ghz
Specification
Overall Dimension 61x63x46.2 mm
Thermal Resistance 0.476 °C/W
Weight 246 g
Heat Sink
Material Aluminum A1070/A6063 & Copper Base & Honeywell PCM-45 Thermal Pad
Dimension 61.9x63x36.2 mm
Fan
Dimension 60x60x10 mm
Speed 5300 rpm
Bearing Ball
Rated Voltage 12 V
Air Flow 24.4 cfm
Noise Level 40 dBA
Air Press. 0.18 inch-H2O

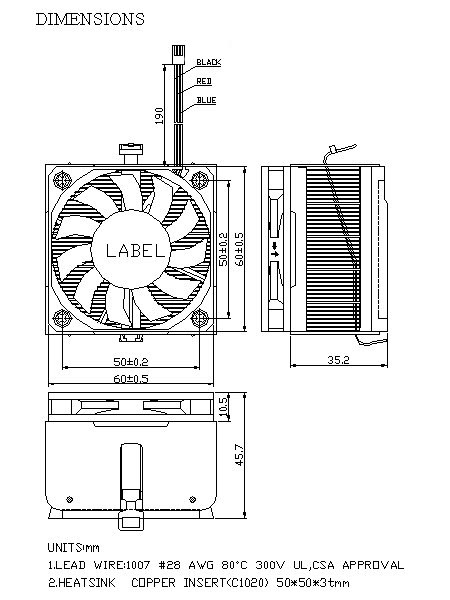

Cooler Dimension

    Fan & Heatsink
Dimension
 		Bearing Rated Voltage Operation Voltage Rated Current Rated Input Power Max. AirFlow Max.Air Pressure Speed Operation Temp.
mm   V V A W CFM inch-H2O RPM °C
60x60x10 Ball 12 12±15% 0.29 3.48 24.4 0.18 5300 -10°C ~ +65°C
 Skived Fin Heat Sink
  • Material: Aluminum A1070/A6063 & Copper Base & Honeywell PCM-45 Thermal Pad
  • Dimension: 61.9x63x36.2
  • Pitch: 1.5 mm
  • Thickness of fin: 0.5 mm
  • Number of fins: 40
  • Height of fin: 21 mm
  • Height of base: 9 mm
  • Length of base: 60 mm
Our Price:pad$15.00
Availability: Usually ships the next business day.
Part#: DC1206BM-L/610-P-Cu
UPS Ground Shipping: $10.00
Canada : $20.00
Alaska/Hawaii: $40.00


DC1206BM-L/610-P-Cu Visa ,MasterCard, Discover, and American Express
