3U (5.25" Open Bay) Front Access Rackmount Chassis

(13.19" Deep) ( 12" x 9.6" ATX / Micro-ATX / Mini ITX ) USB3.0 Server Case

Support Standard ATX PS2 / PS3 size & Mini Redundant PSU

IPC-3335F-BK


pad



















pad
border=0


Optional

Optional


(The pricing does not include Power Supply MB, HDDs and rail set on the picture)

Click thumbnails to view larger photos

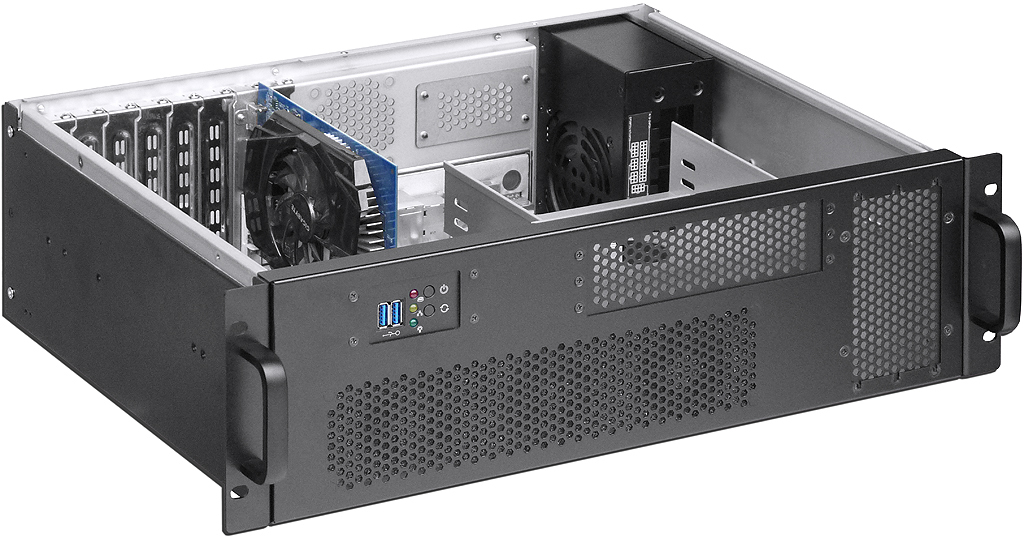

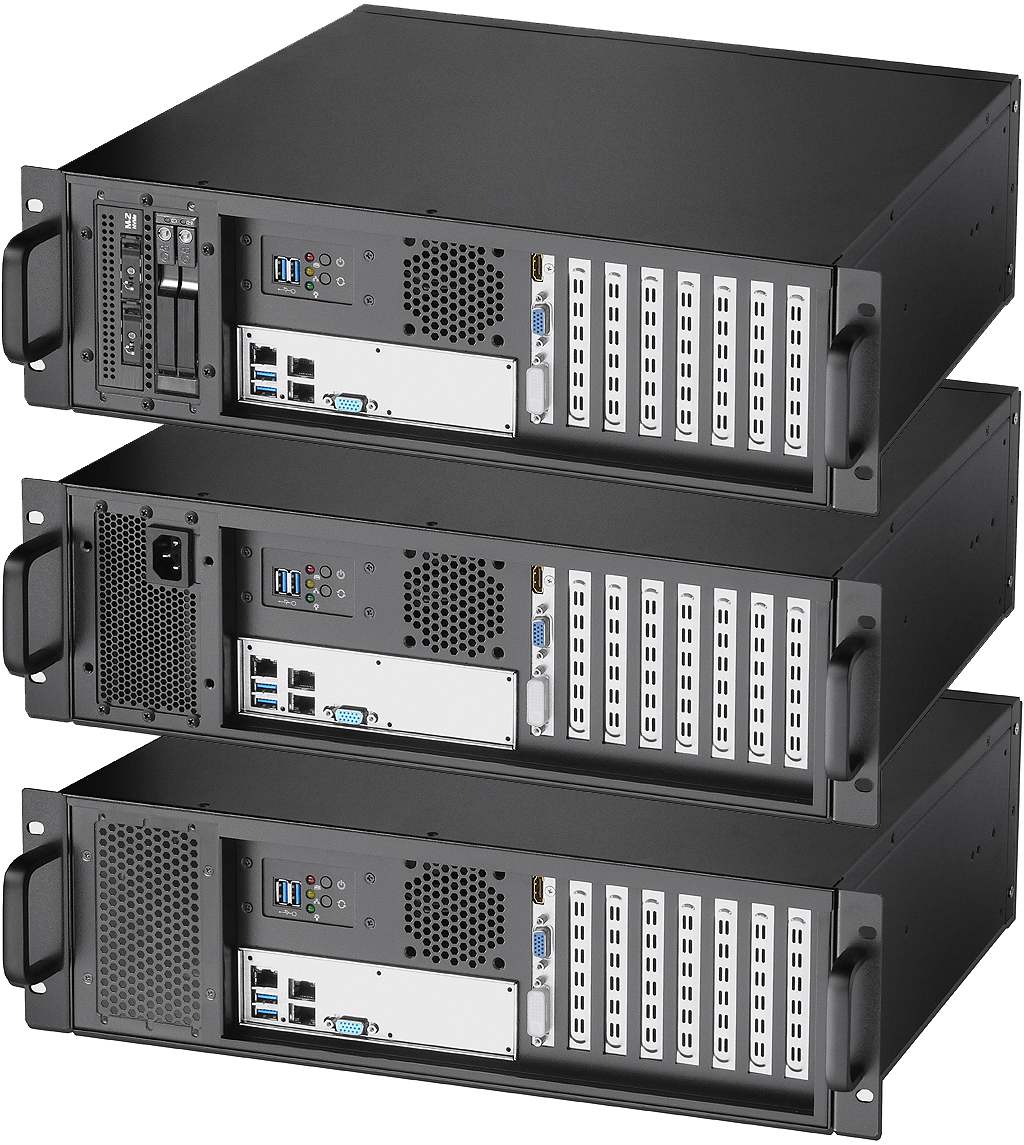

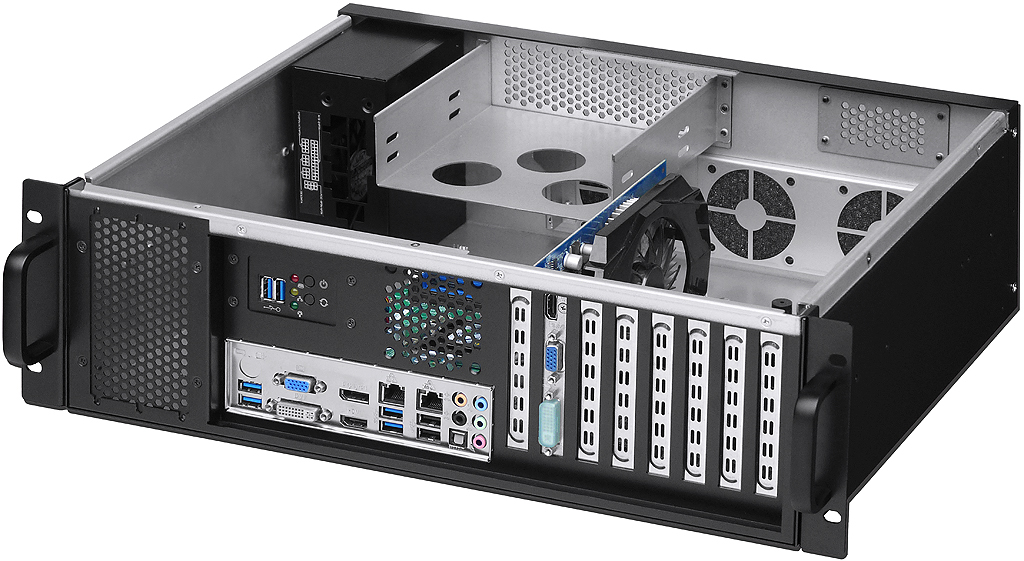

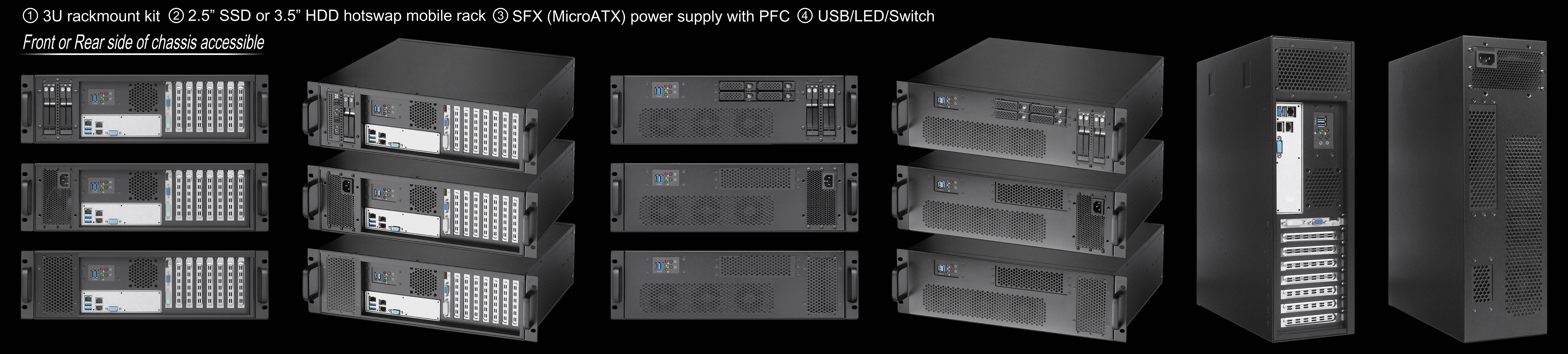

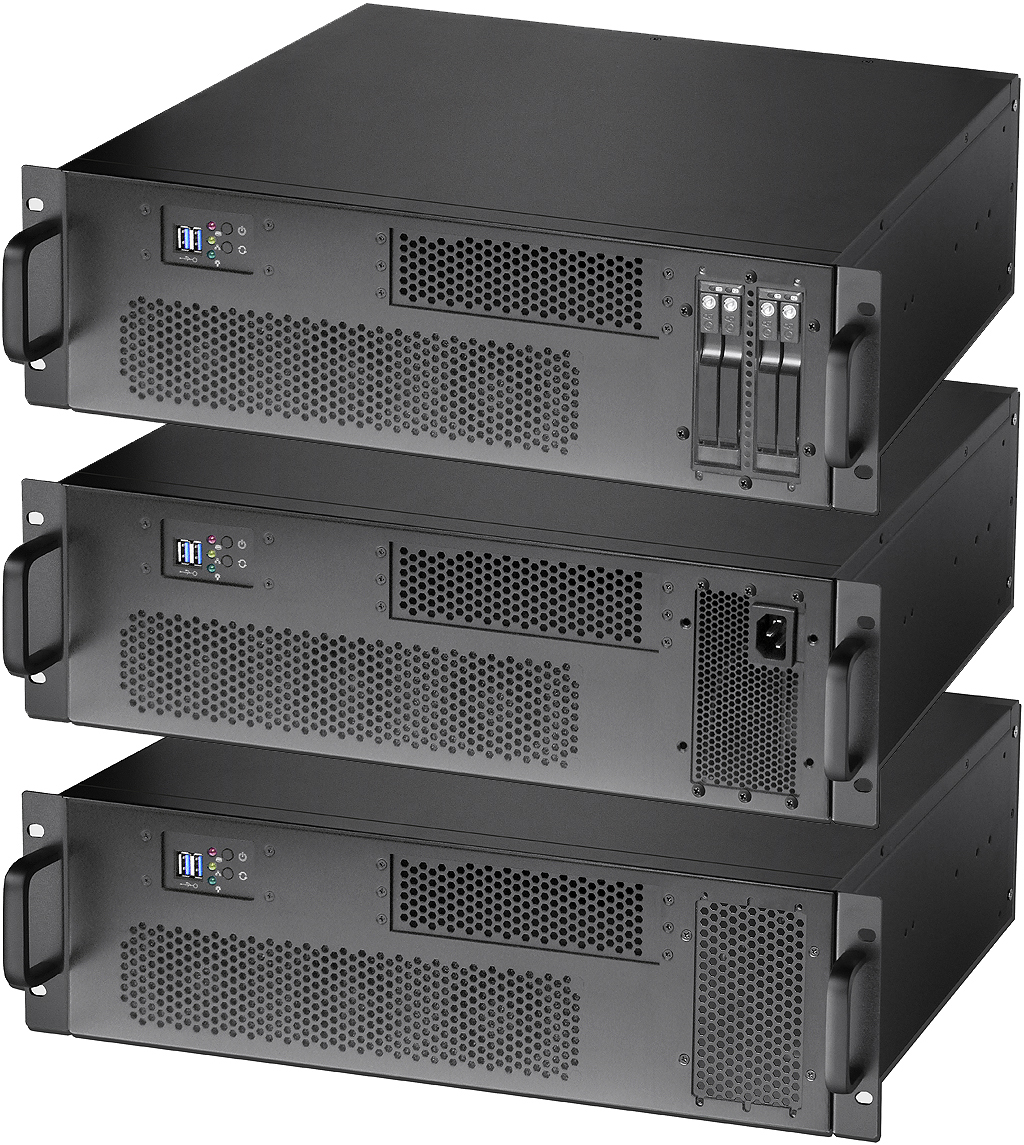

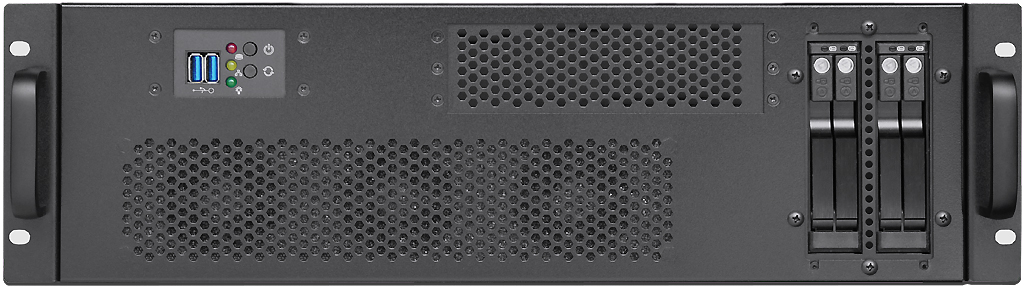

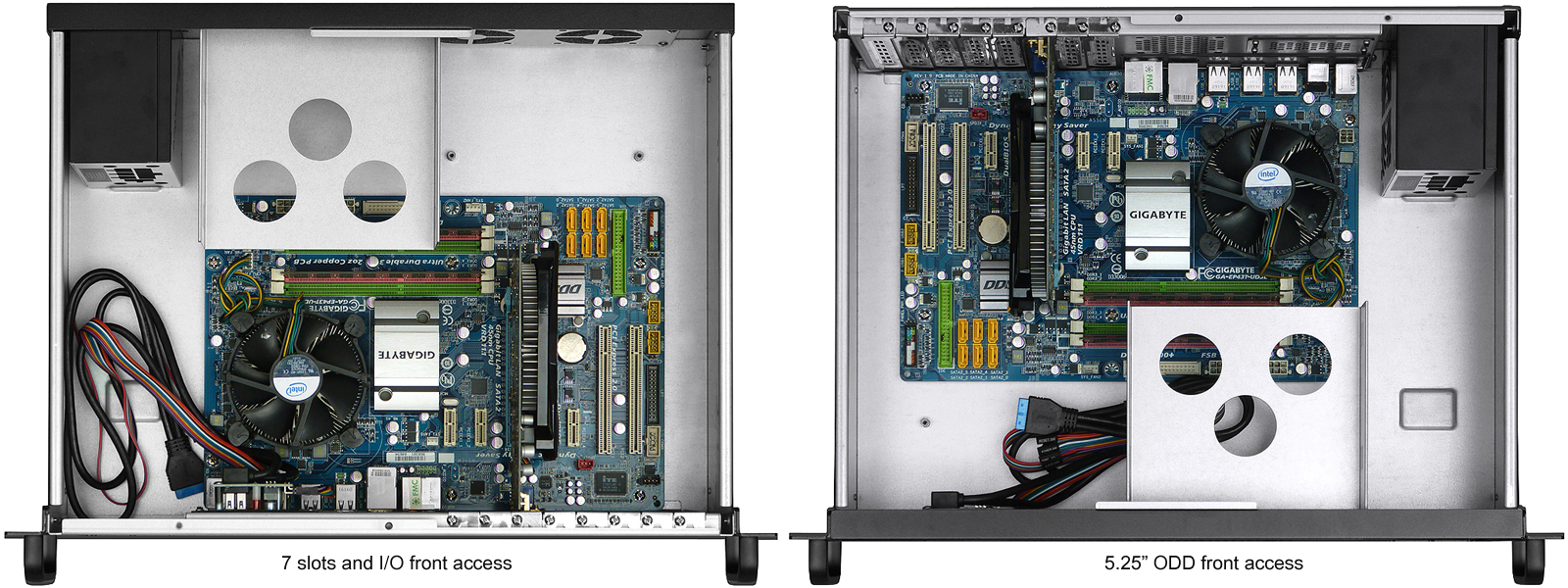

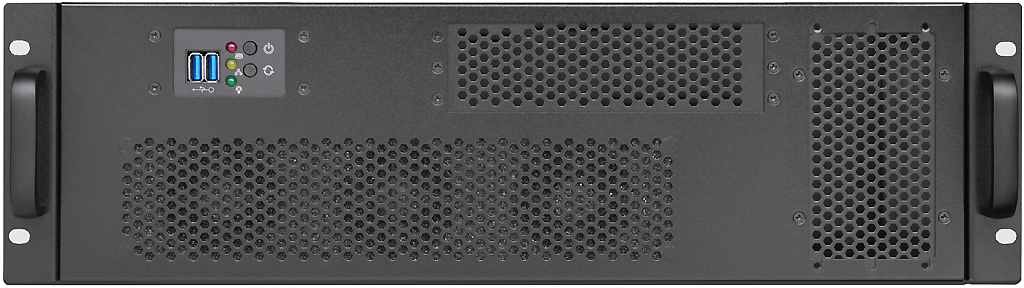

One of the features of the 3U IPC-3335F is that the depth is only 335mm, the I/O and SFX (MicroATX) power supply and the optional hot-swappable SSD/HDD mobile rack can be installed at front or rear side of chassis, even pedestal as a tower chassis is compatible. Less than 280mm depth of Nvidia or other brands of GPU cards are compatible with this 3U chassis very well. The motherboard compatibility accepts maximum CEB 12" x 10.5" or smaller size motherboard also accepted. With its features which can meet the needs of AI high-end computing nowadays. The storage space of this chassis can be installed with 1 set of 5.25" ODD, and optional 2 sets of 3.5" FDD device. The chassis mechanism is made of 1.2mm~2.0mm thick high-strength SGCC sheet metal, the cut surface of all sheet metal parts is designed with smooth hemming to ensure that hands will not be cut.

PRODUCT TECHNICAL SPECIFICATIONS

  • Storage space: One 5.25 ODD bay

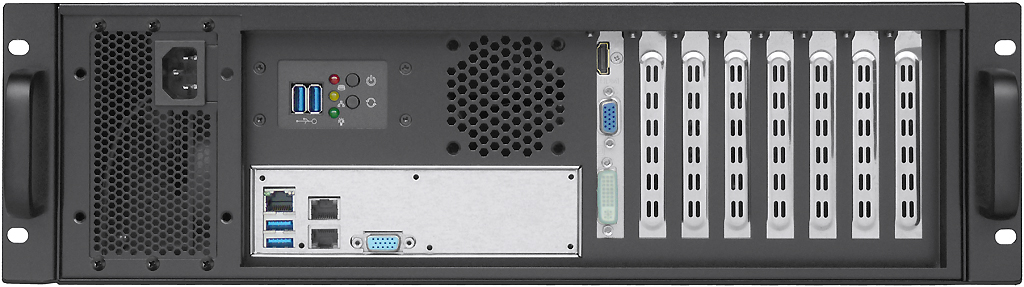

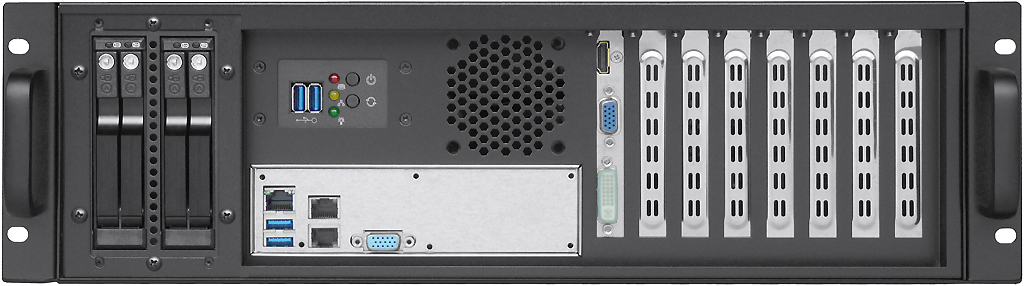

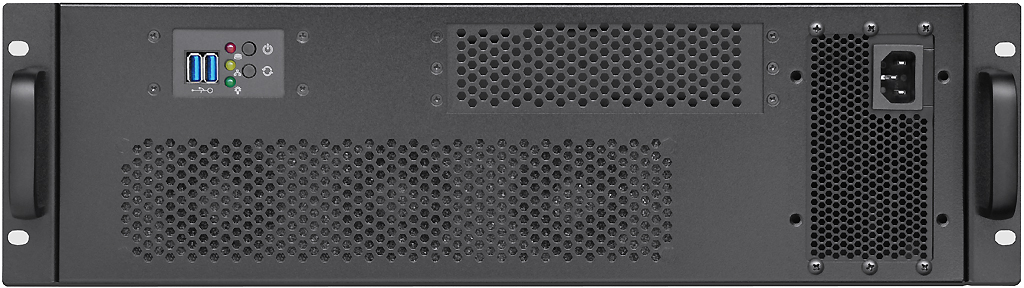

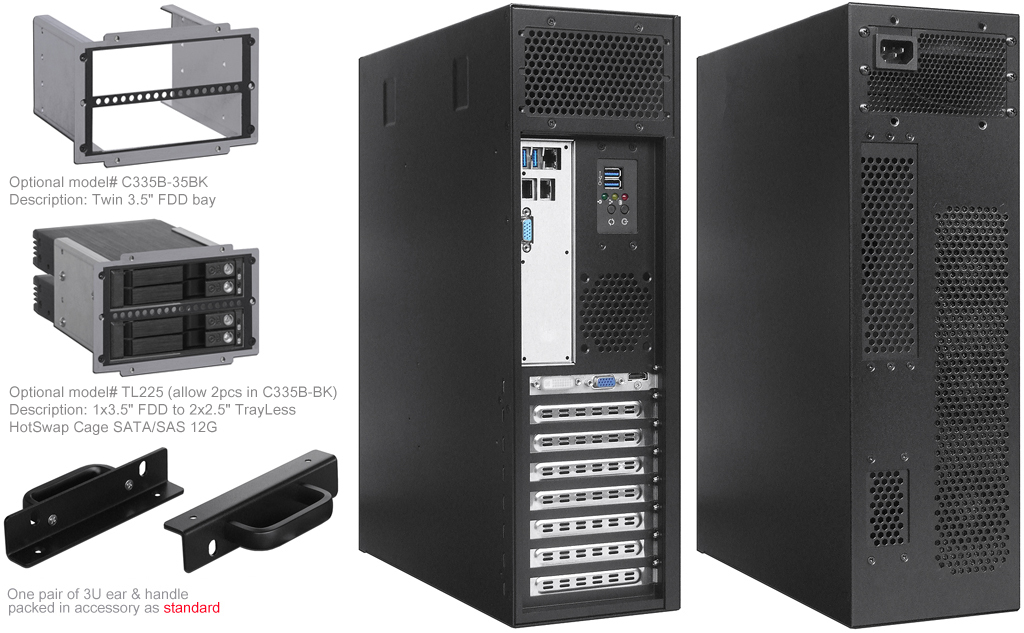

  • I/O front or rear or pedestal type can be achieved without additional fixing brackets

  • Intake fan (option): 3 60mmx25mm fans installed at filter side under the 5.25" ODD

  • Exhaust fan (option): 1 60mmx25mm fan with fan guard above the top of I/O section

  • Major sheet metal by 1.2mm~2.0mm thickness SGCC ultra-high strength patternless

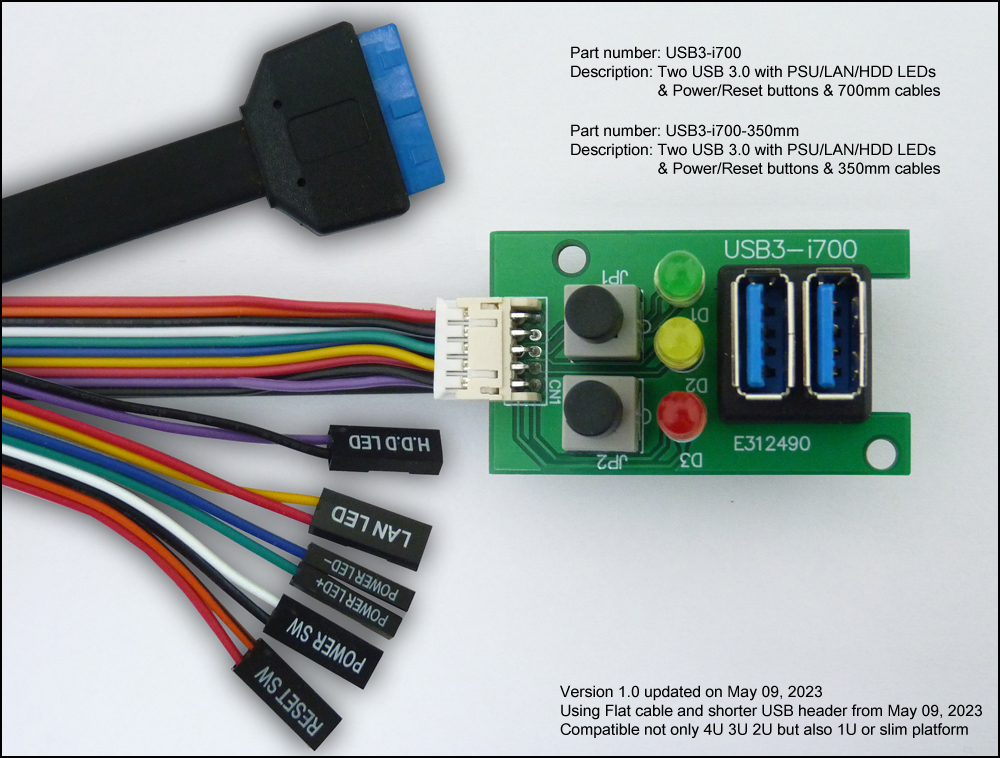

  • Standard equipped with two USB 3.0 and LAN/HDD/Power LED indicator light display

  • Compatible PSU: SFX (MicroATX) PSU with PFC (D.100 x W.125 x H.63.5 /mm)

  • Compatible MB: CEB1.01 (12"x10.5"), ATX(12"x9.6"), mATX(9.6"x9.6"), ITX(6.7"x6.7")

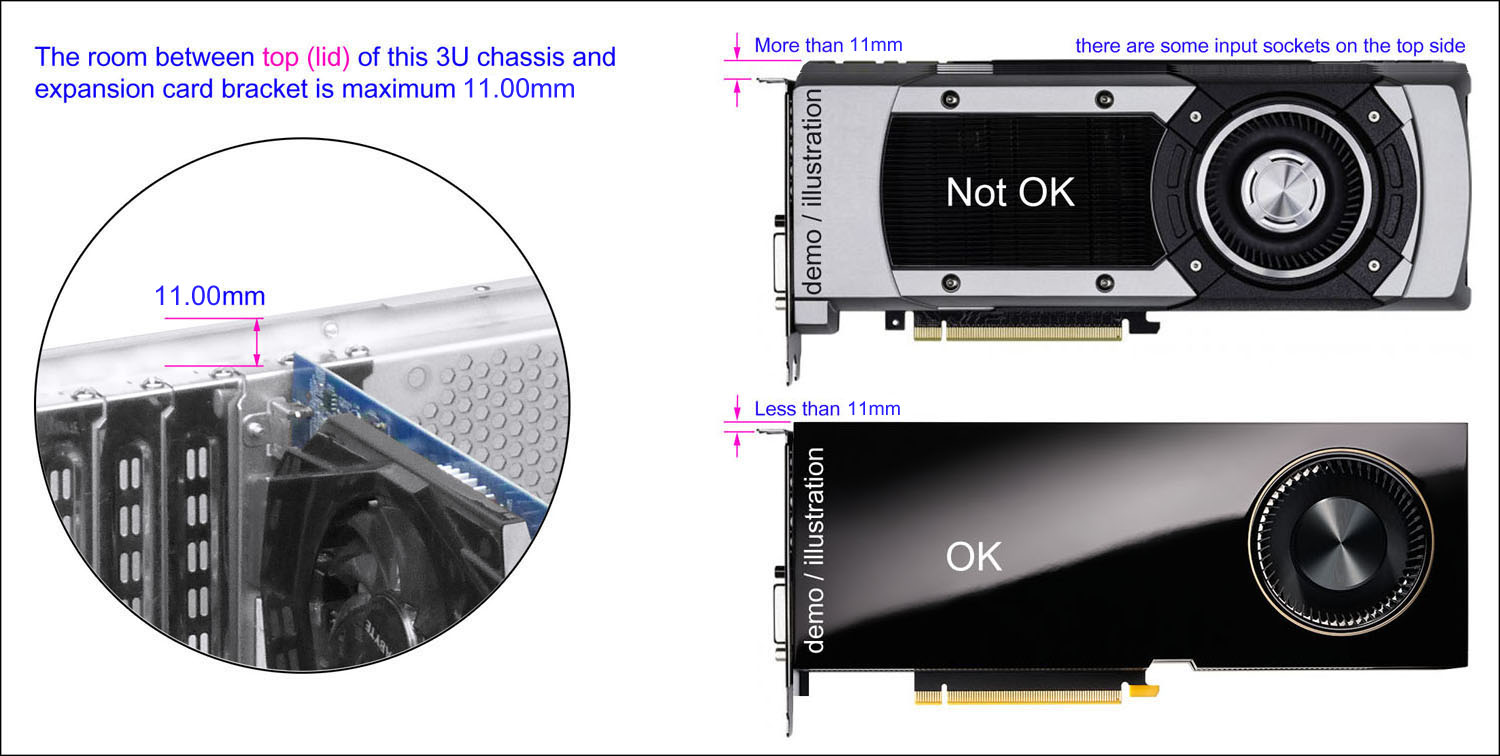

  • 8-slot rear panel supports 7-slot NVIDIA or other GPU cards (max. 280mm)

  • Standard paint: scratch-resistant Black textured paint on surface of chassis

  • Chassis dimension: 19" x 3U x 335mm (13.19" deep)



Dimension Drawing

Our Price: $150.00
Availability: Usually ships the next business day
Part#: IPC-3335F-BK
Ground Shipping: $55.00
Canada : $100.00
Alaska/Hawaii: $100.00

Chassis Quick Assembly Manual




  IPC-3335F-BK


***Free S/H with chassis purchase and ship together***




24in 2 Layer 3 Travel 2 x Universal Slide Rail & 4 x Rail Holder $50
18in Full Extension 2 x Universal Slide Rail & 4 x Rail Holder $40

4 Post Rear Mount and 2 post Central Mount brackets $15

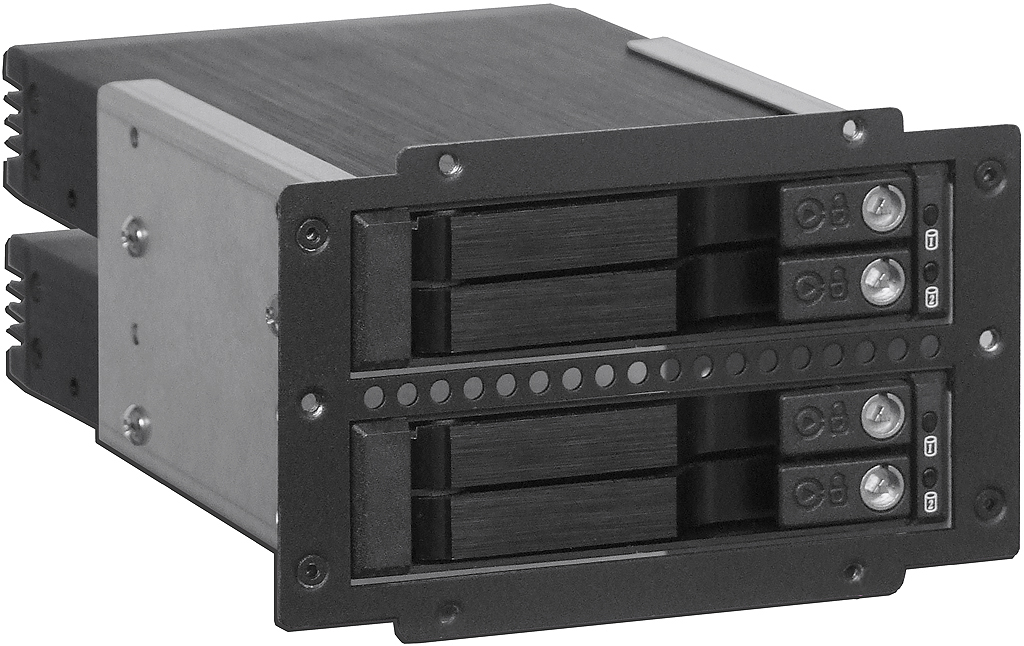

Aluminum 1 x 5.25"  to 4x2.5" SAS/ATA Hot-Swap Cage Backplane TL-225_525 $22
1 x 5.25 to 2 x M.2 SSD Removable Cage M.2 NVMe 64Gbps NVME-102-525 $92
Aluminum 1 x 5.25"  to 4x2.5" SAS/SATA Hot-Swap Cage Backplane RW-425 $52
Aluminum 1 x 5.25"  to 4x2.5" SATA2/SATA3 (SAS12G) Hot-Swap Cage Backplane RW-1425 $62
Aluminum 1 x 5.25"  to 6x2.5" SATA2/SATA3 (SAS12G) Hot-Swap Cage Backplane RW-625 $80
5.25to 8x2.5" SATA Hot-Swap Cage Backplane RW-1825 $98
1 x 5.25 to 4 x M.2 SSD Removable Cage M.2 NVMe 64Gbps NVME-104 $230
1 x 5.25 to 8 x M.2 SSD Removable Cage M.2 NVMe 64Gbps NVME-108 $440
Aluminum 1 x 5.25" to 1x3.5" SATA Hot-Swap Cage Backplane NVME-104-25 $180
Aluminum 1 x 5.25" to 1x3.5" SAS/SATA TrayLess Hot-Swap Cage Backplane TL-135 $25
