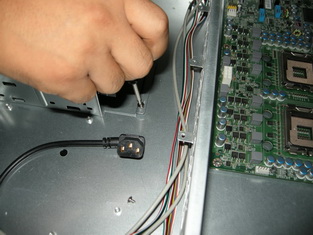

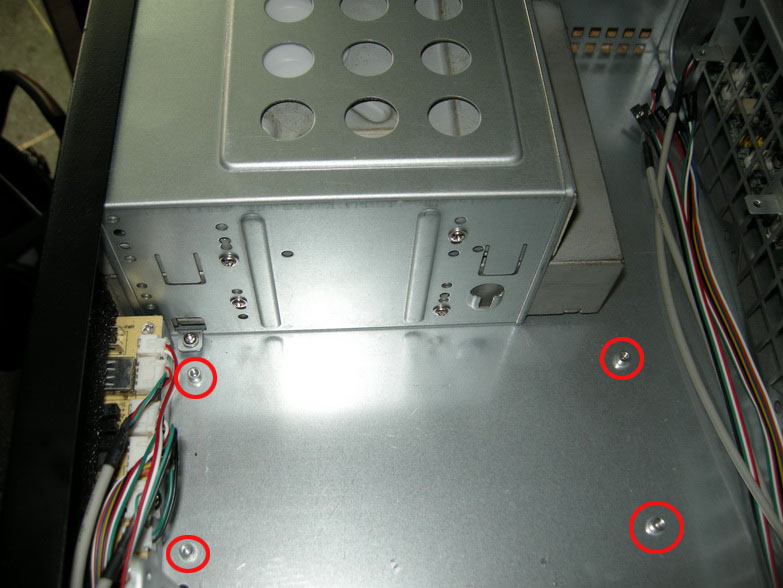

Step 1 : Open the top cover remove the 2 screw for the front HDD cage

Step 2 : Remove the HDD cage

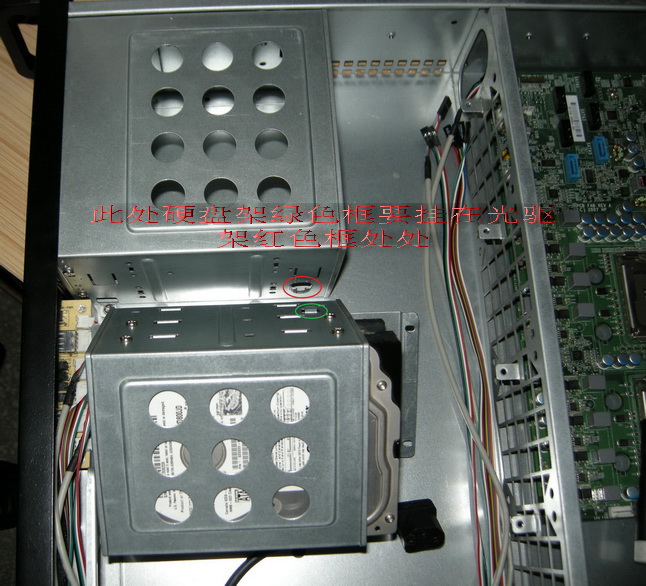

(Note : There is a lock between HDD and DVD cages, green part need to be on the outside comparing to red parts)

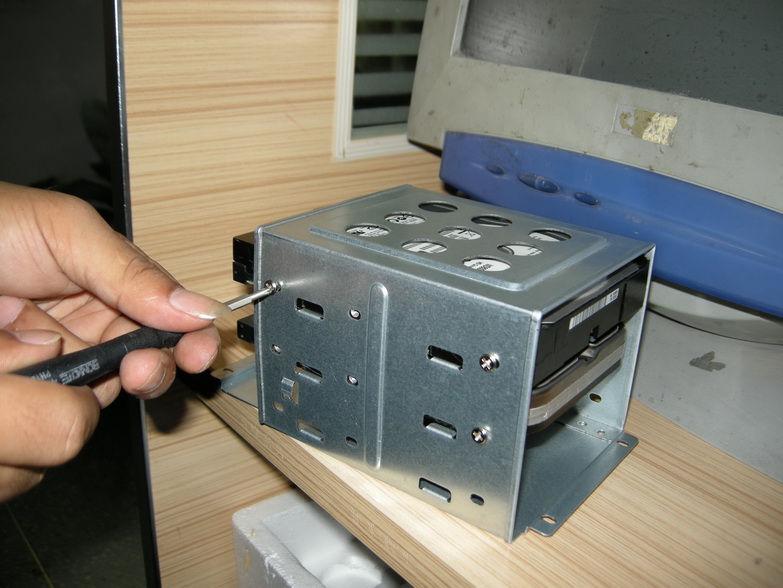

Step 3 : Install the HDDs on the HDD cage

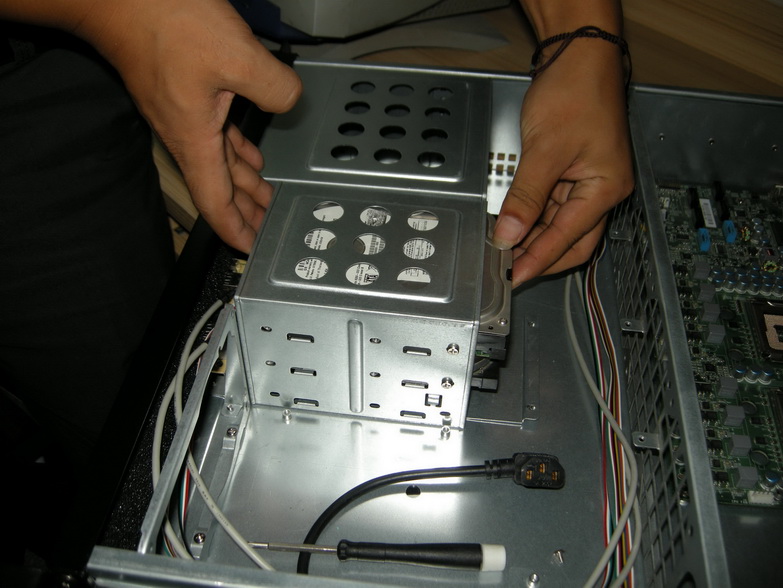

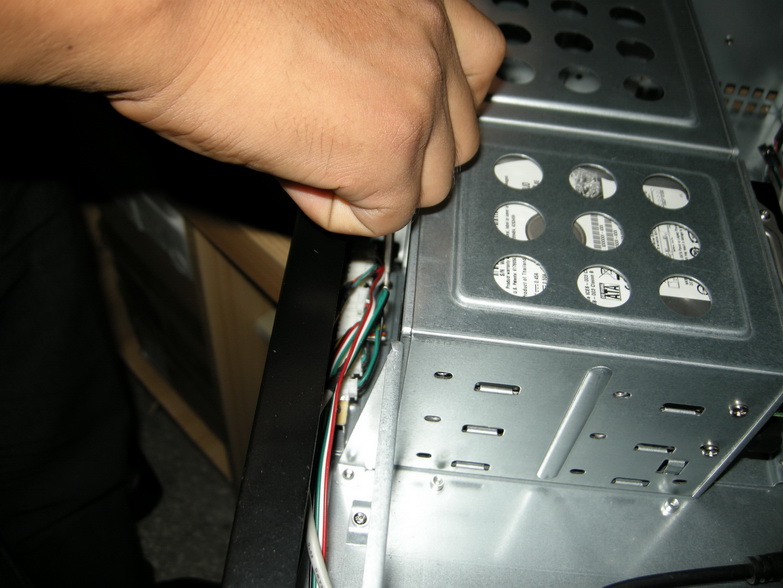

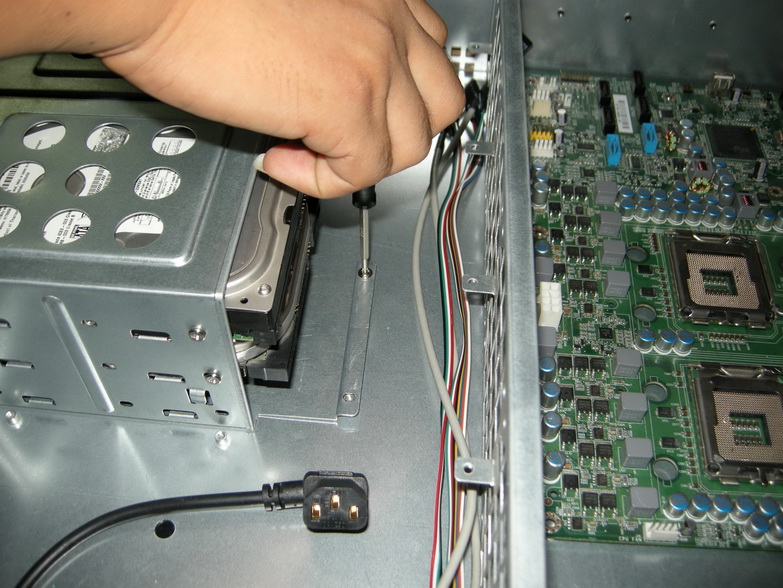

Step 4 : Install the HDD cage

(Note; need to lock the HDD cage onto the DVD cage; Detail at Step 2)

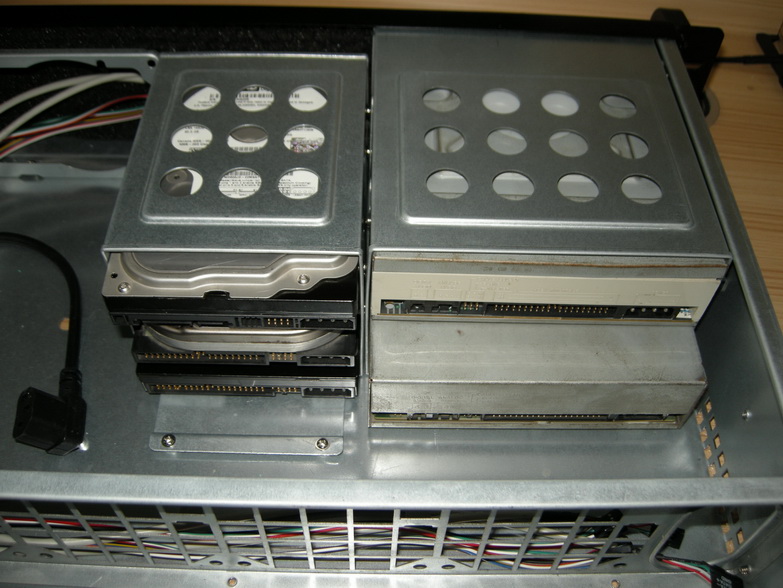

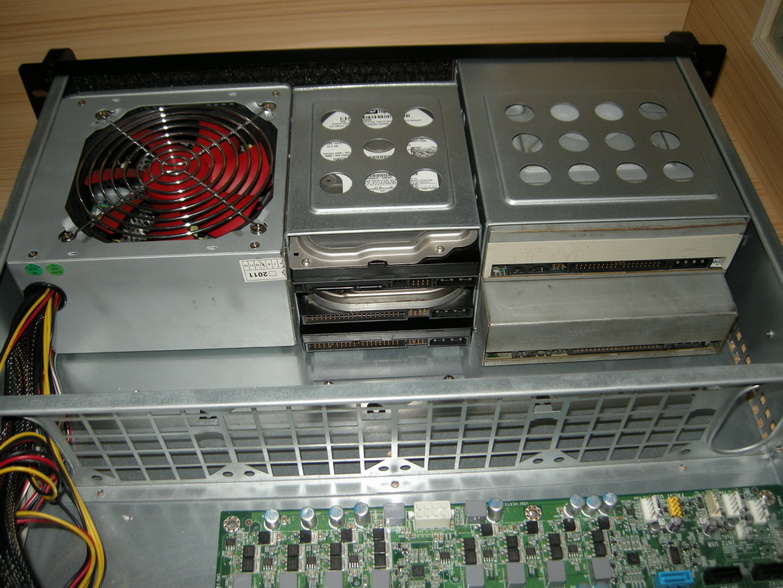

Finish ; 3 HDDs on the HDD cage and PSU / DVD

Finish ; 3 HDDs on the HDD cage and PSU / DVD

• Standard: 19-inch EIA (Electronic Industries Association)

• 2U Rack-mount Chassis

• 1 x USB 2.0

• Drive Bracket: 5.25" x 1, 3.5" open x 1+ Hidden HDD x 6 (front 3 and rear 3)

• Heavy duty SPCC t: 1.0 steel

• Support different configurations of ATX, Micro ATX boards.

• 3 x 8cm cooling fans (1 behind the HDD farm).

• Key Lock front door to secure networking environment.

• Standard PS2 ATX size power supply in the front (Not include)

• 7-slot Low-profile rear window! (Does not take riser card)

• Dimensions: 2U(H) x 19 "(W);20.07"(D)

• Black Color Case
