Athena
Power 1U
500W
Dual Fan
EPS12V
80PLUS Power Supply
U1ATX50
|
|
PRODUCT
TECHNICAL SPECIFICATIONS
|
Introducing Athena Power's 500W 1U
(AP-U1ATX50) power supply. Designed for the 1U form
factor to provide compact flexibility for small
industrial computer rackmount chassis. The EPS-12V
8pin and additional P4 4+4 pin connector gives full
support on core 2 dual processor. Features Active PFC
(Power Factor Correction) and remote ON/OFF function
for high efficiency and reliability. Also includes
internal front and rear 40mm ball-bearing fan and
thermal fan speed control for maximum heat and noise
dissipation.
|
|
|
|
|
SPECIFICATION |
|
Output Power |
500 Watt |
|
Input Voltage |
88
-264 Volts Ac |
|
Frequency |
60
/ 50 Hz |
|
Weight |
3.5
lbs |
|
Temperature Range |
Operating: 0°C ~ +50°C on Full Load;
Storage & Shipping: -20°C ~ +80°C |
|
Humidity |
5 ~
90% on Operating, 5 ~ 95% on Storage |
|
Dielectric Withstand |
Primary Frame Ground 1800V AC for 1 Second |
| MTBF |
100,000 Hours on Maximum Load at +25°C |
| Rise
time |
Less than 20ms |
|
Hold-up Time |
17ms Minimum at Nominal Input Voltage |
|
Dimensions |
( W
x H x D ) 3.93" x 1.57" x 8.66" |
|
Output |
| |
500W with 80 PLUS™ |
| |
| Voltage |
+5V |
-5V |
+12V1 |
+12V2 |
-12V |
+3.3V |
+5V-SB |
| Current |
20A |
0.5A |
13A |
13A |
0.8A |
20A |
3.0A |
|
|
|
Warranty |
3 Year |
|
|
| |
|
CONNECTORS |
|
|
|
|
|
|
|
|
ATX Connector
24 (20+4) Pin
|
EPS-12V
8 Pin
|
P4-12V
4 Pin
|
SATA
15 Pin
|
Molex
4 Pin
|
Floppy
4 Pin
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|

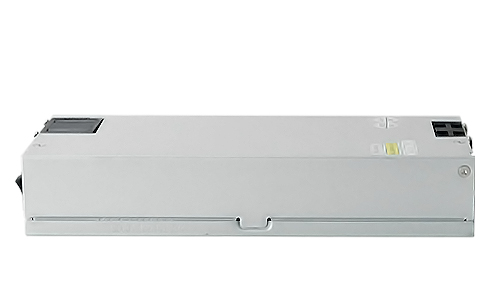

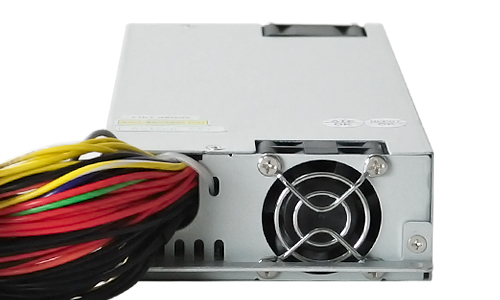

Click
thumbnails to view larger photos
|
|
|
|
|
| Our Price:$120.00 |
| Availability:
Usually ships the next business day. |
| Part#:
U1ATX50 |
| Ground Shipping: $10.00 |
| Canada :
$25.00 |
| Alaska/Hawaii:
$40.00 |
|
|
|
U1ATX50 |
 |
|
|
|
