Athena
Power 480W
(24/20+4) pin
SATA2
/ PCI Express
support
AP-P4ATX48F
Power Supply |
|
|
|
PRODUCT
TECHNICAL SPECIFICATIONS
-
High efficiency
-
Low Ripple & Noise
-
Output over
voltage protection
-
Short circuit
protection on all outputs
-
Reset table power
shut down
-
Approved by UL, CB
& CE
-
24Pin (20+4) ATX
Connector
-
15Pin SATA2
Connector Ready
-
PCI Express 6
pin connector to provide power to the VGA card
-
FCC part 15
subpart J Class B at 115VAC operation & CISPR 22 Class B at
230 VAC operation
-
100% burn-in under
high ambient temperature (50¢J)
-
Vacuum-impregnated
transformer
-
100% Hi-pot tested
-
Dimension:
5.75”(W) x 3.25”(H) x 6.25”(D)
Power Description:
| Output Power |
480 W |
|
|
|
|
|
|
|
| Input Voltage |
115V /
230V AC |
| Frequency |
60/ 50 Hz |
| Output |
Voltage |
+5V |
-5V |
+12V 1 |
-12V |
+3.3V |
+5V-SB |
|
| Current |
22/24A |
0.5A |
24A |
0.8A |
14A |
2.5A |
| Technical
Information: |
| Fan |
Dual Fan |
| MTBF |
100000 Hours at 25°C |

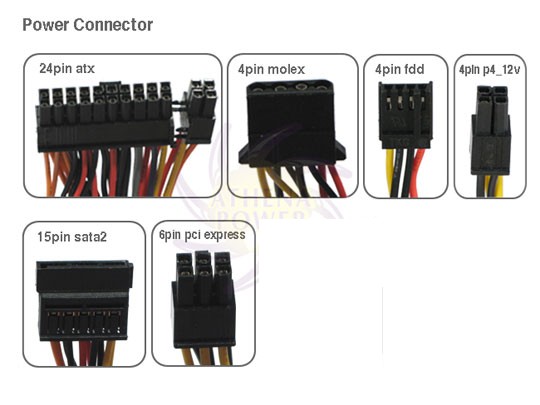

| Connectors |
24pin(20+4) ATX | 4pin P4-12V | 4pin Molex |
4pin FDD |15pin SATA2 6pinPCI Express |
|
|
|
|
|
|
|
 |
|
|
 |
|
|
Click
thumbnails to view larger photos
|
|
|
|
|
| Our Price:$38.00 |
| Availability:
Usually ships the next business day. |
| Part#: AP-P4ATX48F |
| Ground Shipping: $10.00 |
| Canada :
$25.00 |
| Alaska/Hawaii:
$40.00 |
|
|
|
AP-P4ATX48F |
 |
|
|
|
