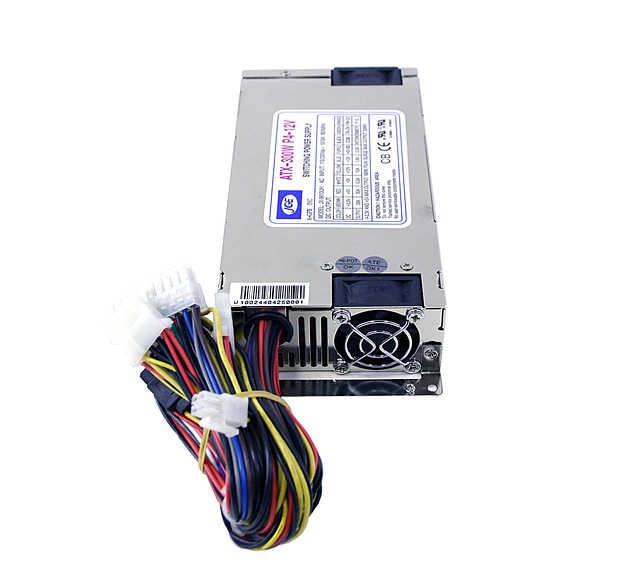

Athena Power - U1ATX30A 1U 300W
Dual Fan Power Supply |
|
|
|
PRODUCT
TECHNICAL SPECIFICATIONS
-
AC Input Voltage: 90 to 132 or 180 to 264 Auto selectable 50
to 60 Hz.
-
DC Output: 300W maximum
-
Noise Test – Noise bandwidth is from DC to 20 MHz.
-
Ripple frequencies greater than 1MHz shall be attenuated by
the measurement System.
-
Add 0.1uF/10uF capacitor at output connector terminals for
ripple and noise measurements
-
The combined total power from 5V & 3.3V shall not exceed 180W.
-
The combined total power from +5V and +12V & +3.3V shall not
exceed 278W.
-
+5V SB DC Output 2A.
PS-ON
Remote On/Off Control:
-
When PS-ON is pulled to TTL Low, the DC output is to be
enabled.
-
When PS-OFF is pulled to TTL high, the DC output is to be
disabled.
PW-OK
-
PW-OK is power good signal and should be asserted high by the
power
-
supply to indicate that +5VDC and +3.3VDC output are above the
under voltage thresholds of the power supply TTL. compatible
signal out with 100ms to 500ms.
|
|
|
|
|
|
|
 |
|
|
|
|
|
Click
thumbnails to view larger photos
|
|
|
|
|
| Our Price:$65.00 |
| Availability:
Usually ships the next business day. |
| Part#:
U1ATX30A |
| UPS Ground Shipping: $10.00 |
| Canada :
$20.00 |
| Alaska/Hawaii:
$40.00 |
|
|
|
U1ATX30A |
 |
|
|
|
