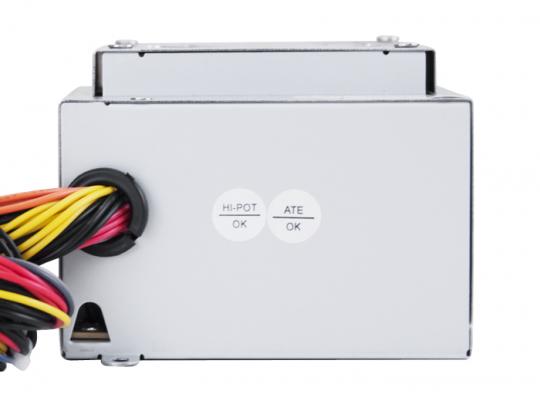

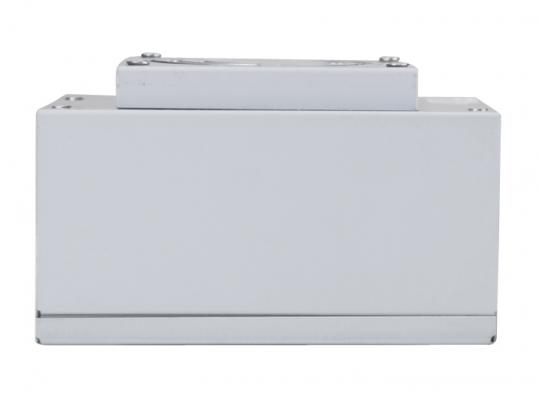

Gateway Micro ATX
200W Replacement Power Supply
Athena Power MP4ATX20B |
|
|
|
PRODUCT
TECHNICAL SPECIFICATIONS
-
High efficiency (Focus on Gateway
System)
-
Low Ripple & Noise
-
Output over voltage protection
-
Short circuit protection on all
outputs
-
Reset table power shut down
-
Approved by UL, TUV, CB & CE
-
Internal 12 VDE fan
-
Complies with Fcc part 15 subpart
J Class B at 115 VAC operation &
CISPR 22 Class B at 230 VAC
operation
-
100% burn-in under high ambient
temperature (50centJ)
-
Vacuum -impregnated transformer
-
MTBF: 100k hours at 25centJ
-
100% Hi-pot tested
-
Full RANGE 190-264VAC (180W)
-
Dimension: 4” W x 5” D x 2.5”(3”
W/Fan) H
-
AC INPUT: 115/230 Vac~ 10/5A
60/50Hz
-
DC OUTPUT:
-
COLOR BROWN RED WHITE YELLOW BLUE
PURPLE BLACK GREEN ORANGE
-
DC +3.3V +5V -5V 12V -12V +5V-SB
COM PS-ON PW-OK
-
OUTPUT 18A 12A 0.5A 10A 1.0A 2.0A
RETURN REMOTE P.G.
-
(+3.3V and +5V Max Output 118W,
Peak Surge Max Output 198W)
|
|
|
|
|
 |
|
|
|
|
|
|
Power supplies:
- Astec ATX90-3405
- Astec ATX93-3405
- Bestec ATX-100-6
- Delta DPS-145PB-117 A/B
- Delta DPS-145PB-117 D
- Enlight EN-8156903
- Fortron/Source FSP150-51NI
- Gateway spares 6500192, 6500329,
6500361, 6500401, 6500451, 6500495, 6500505,
6500506, 6500507, 6500510, 6500545, 6500527
- HIPRO HP-G1507A3C
- HIPRO HP-K1507A3C
- Newton NPS-90AB-1 B (Rev 1)
- Newton NPS-90-2 A
- Newton NPS-145PB-117 A (NPS-145-PB-117A)
Computer Systems:
- Gateway Essential 433c
- Gateway Essential 633c
- Gateway Essential e866
- Gateway Essentials 933
|
Support List ; If your machine model
does not list below,
please ask us |
|
|
|
Click
thumbnails to view larger photos
|
|
|
|
|
| Our Price:$22.00 |
| Availability:
Usually ships the next business day. |
| Part#: MP4ATX20B |
| UPS Ground Shipping: $10.00 |
| Canada :
$20.00 |
| Alaska/Hawaii:
$40.00 |
|
|
|
MP4ATX20B |
 |
|
|
|
