PRODUCT TECHNICAL SPECIFICATIONS

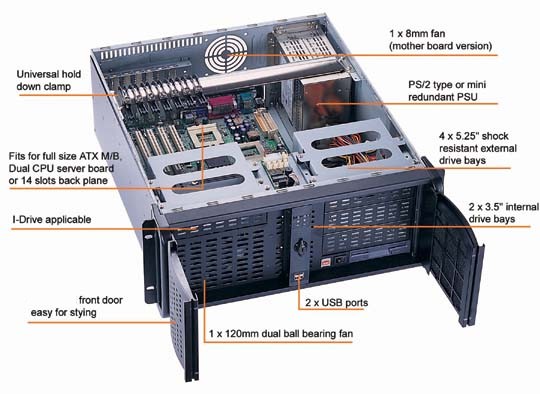

• 4U Rack-mount Server Chassis

• Standard: EIA RS-310C 19-inch EIA (Electronic Industries Association)

• Drive Bracket: 4 x 5.25" + 1 x 3.5" + 2 x 3.5" (internal) drive bays

• Heavy duty SPCC t: 1.2 steel construction. SECC w/ painted.

• Cooling System :

  Front: 1 x 120mm dual-ball bearing fan

  Back: 1 x 80mm dual-ball bearing fan (optional for 2)

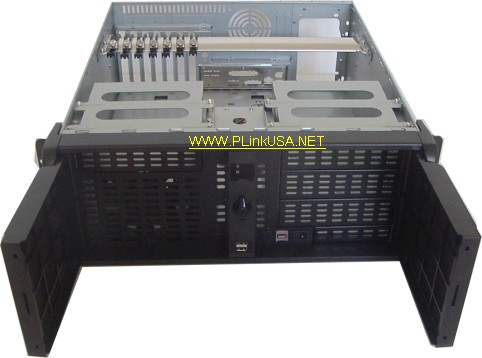

• Two Aluminum front doors w/ ventholes and replaceable dust filters to secure networking environment.

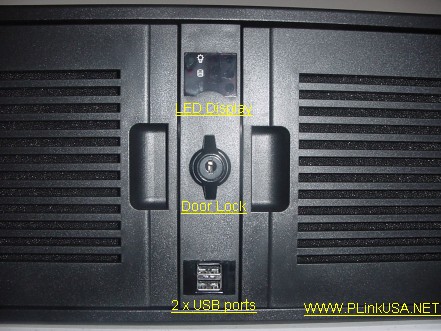

• Front Panel Control

  • 1 x chassis door lock

  • 1 x system power-on switch (right),

  • 1 x system reset switch (right)

  • 1 x Alert reset switch



• System Indicator

  • 1 x Power on LED
  • 1 x HDD LED
  • 1 x fan failed LED

  • 2 x thermal status LED

• I/O port
  • 2 x USB port (Front)
  • 2 x 68-pin Ultra SCSI port (Rear)

• Mounting kit : Front rack mount L-brackets or slide rails

• Power Supply : Fit PS/2 PSU or Mini Redundant PSU

• 1 x 8 ohm System speaker

• Fit full size ATX, EATX (13.0" x 12.0") M/Bs or dual-CPU server board (Dual Xeon).

• Beige / Black Color Case

• Operation Temperature : 0 to 55 degree C (32 to 131 degree F) Environmental Monitoring & Alarm

• Gross Weight : 15 Kg (33lb)

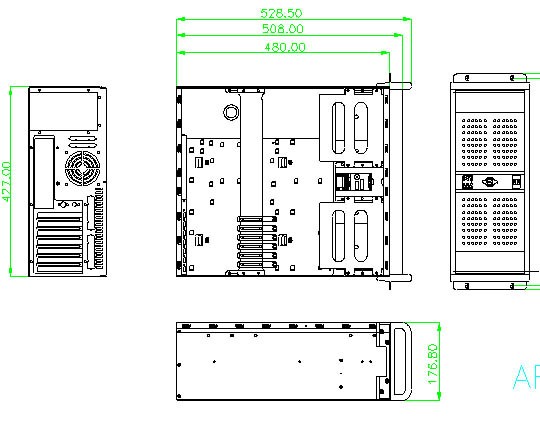

• Dimension 427mm(W) x 480mm (D) x 177 mm (H) /

• 16.8" (W) x 18.9" (D) x 7.0" (H)
