• Intel Pentium 4 (Nothwood) processor with 512KB L2 cache process utilizes FC-PGA2 Package technology
• Available at 2GHz and 2.2GHz or higher becoming available

Chipset

• Intel 845G and ICH4

Bus Interface

• Front Side Bus up to 400/533 MHz

Main Memory

• Two rows of 168-pin DIMM sockets PC1600/2100 DDR SDRAM
• Up to 2GB

Data Path

• Data Path 32-bit on CPU
• 32-bit on PCI bus,16bit on ISA bus

I/O

• I/O:Intel 82801 DB ICH4 and W83627HF
• USB Ports:Four USB 2.0 up to 480Mbps
• Serial Ports:Two RS-232 serial ports
• Parallel Port:One bi-direction parallel port,SPP/ECP/EPP
• Floppy Disk:One floppy supports up to two flppy drives
• EIDE:Dual Ultra ATA/100 bus master IDE channels up to 4 ATAPI drives,IDE2 supports +5V Vcc for addictional DiskOnModule(DOM) flash disk
• IrDA:One IrDA compliant Infrared interface
• K/B & Mouse:PS/2 keyboard and mouse

On-board VGA

• VGA function support
• Auto detect dynamic video memory up to 64MB

Ethernet

• Intel ICH4 and 82562ET,2nd LAN with Intel 82559ER

Real Time Clock

• Intel ICH4 built-In RTC

BIOS

• Phoenix-Award 2MB PnP flash BIOS

Watchdog Time

• Generates NMI or system reset with 1 to 255 sec. /min. of time out value

OS Compatibility

• PC and MS-DOS;Windows 95;Windows 98; series;Windows 2000;Windows Me;Windows NT 4.0 and Windows XP;Linux Series

Power Requirements

• Support Voltage:Standard ATX Power

Mechanical

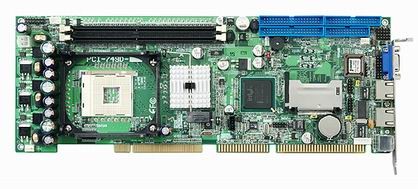

• 13.3" x 4.8" Fullsize SBC

Reliability

• Mouse / Keyboard voltage protected by self-resetting fuses
• 24 months limited warranty
• 6 hours 45 degree C dynamic burn-in

EMI

• CE Certified
• FCC Certified

Environmental

• Operating temperature: 0 to 60 degree C
• Humidity: 5% to 95%
• Storge Temperature:-25 to +65 degree C
