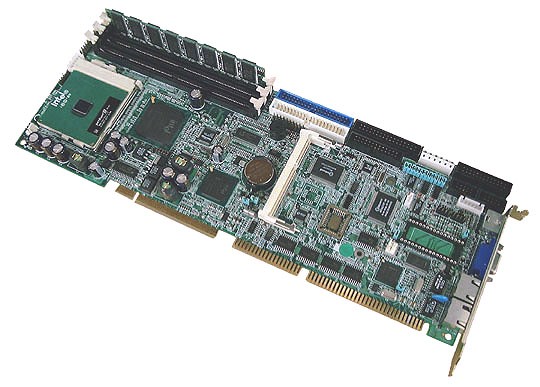

The ISP-778 is a highly integrated SBC for industrial and multimedia applications in cost sensitive markets.

• Support Intel Pentium III processors up to 1.0 GHz or Celeron up to 1.0 GHz
• Support up to 512MB SDRAM
• Full-size All-in-one SBC with PICMG 2.0 compliant
• Support dual 10/100 Base-T Ethernet
• Integrated 815E graphic controller
• On-Board micro PCI slot for extended PCI device module
• DiskOnChip
• USB,Serial and Parallel Ports
• Watchdog timer
• Support high driving capability for ISA-bus slots on backplane

• Support Intel Pentium III processor up to 1.0 GHz
• Support Intel Celeron processor up to 1.0 GHz
• Intel 815E Chipset(ICH2)


Bus Interface

• Front Side Bus (66 / 100 /133 MHz)
• PCI Bus (33 MHz)
• ISA Bus (8.33 MHz)

Cache

• 16 / 16 KB Instruction / Data Level 1
• 128 / 256 KB Pipeline Burst Cache

Main Memory


• Three 168-pin latching DIMM sockets,64-bit
• Up to 512MB of SDRAM, 100 / 133 MHz SDRAM / R-SDRAM, non-ECC mode


Data Path


• 64-bit CPU bus and video memory; 32-bit on PCI bus; 16-bit on ISA bus

System BIOS


• Award BIOS
• Advanced Power Management (APM 1.2)
• Advanced Configuration and Power Interface (ACPI)


On-board VGA

• Intel 815E internal controller for CRT and TTL w/ 4MB Cache
• Support CRT with resolution up to 1600 x 800
• LCD support w/ opt. Panel Link Adapter (TFT)

Connectors

• Faceplate:CRT(femal DB-15); dual Ethernet(2xRJ-45); PS/2 combined for mouse and keyboard(6-pin mini-DIN)

On Board I/O


• I/O:Intel ICH2
• USB Ports:Two (Ver 1.1)
• Serial Ports:Two RS-232 with 16 byte FIFO, serial port 2 configurable RS-422 / 485
• Parallel Port:One bi-directional SPP / ECP / EPP
• Floppy Disk:Support for two drives(360 KB to 2.88 MB)
• EIDE:Four EIDE drives; PIO Mode 4, Bus Master IDE or Ultra DMA / 33 / 66 / 100
• DiskOnChip:Optional 2-288 MB DiskOnChip flash disks
• Ethernet:Dual 10/100 Base-T (815E WFM 2.0 compliant + Intel 82559B)
• Micro PCI slot (1)


Supervisory

• Winbond W83627HF hardware monitoring controller
• Monitoring CPU / system temperature, voltages and fan speeds
• System Monitor utility software opt.
• Watchdog timer 16 levels

Physical and Environmental requirements


• EBX form-factor
• Dimension (L x W): 338 mm (13.32") x 122 mm (4.80")
• Conforms to IEEE P996 PC / AT bus, PCI Rev. 2.2 & PICMG Rev. 2.0 standards
• Operating Temperature: 0~50 degree C (32~122 degree F)
• Humidity : 5% to 95%
